Outline

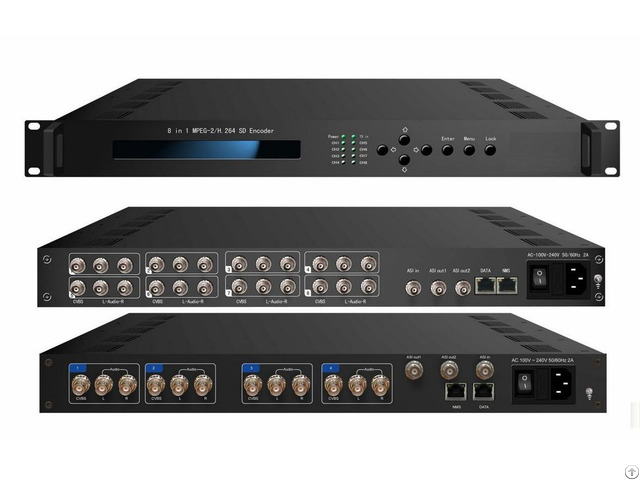

STHD-5708 8IN1 MPEG-2/H.

264 Encoder supports SD MPEG-2/H.

264 video and MPEG-1 audio encoding.

It has 8×CVBS video, 8 pairs of unbalanced audio and 1×ASI (BNC (MUX)) input interfaces, and can multiplex the input signal (TS) to generate DVB transport stream (TS/ASI) and IP (TS over UDP) output.

The encoder suits 1U rack and can be configured by front panel LCD and NMS (network management software).

Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.

Features  MPEG-2/H.

264 video and MPEG-1 audio encoding  8×CVBS video and 8 pairs of unbalanced audio (high-fidelity mono/stereo) input

 1xASI (MUX) input

 Support PAL and NTSC video formats

 Support ASI/IP (TS over UDP, multicast/unicast) output

 LCD/Keyboard control by front panel and network management by Ethernet Lowest cost per channel, breakthrough price Technical Parameter Input Video Signal 8×CVBS, RCA interface, level 1.0 Vp-p Audio Signal 8 pairs of unbalanced audio, RCA interface, level 2.0 Vp-p ASI TS, DVB standard (mux), BNC interface

Video Coding MPEG-2/H.

264

Resolution Standard support 1/2D1, 2/3D1, 3/4D1, 9/16D1 Format PAL/NTSC

Audio Coding Sampling 32KHz, 44.1KHz, 48KHz Code Rate 32, 48, 56, 64, 128, 192, 256, 384, 448Kbps Property MPEG-1 Layer2, 1×stereo or dual-channel

Output 2×ASI 1 as mirror, DVB standard, BNC interface IP 100mbps RJ45, TS over IP/UDP/MPTS/SPTS

Output Bite Rate 1.0~15Mbps continuously adjustable per channel

Control NMS (Ethernet port, RJ-45), Keyboard + LCD

General Features Size 482mm×410mm×44mm Temperature Range 0~45°C (Operation); -20~80°C (Storage) Power 100-240VAC, 50Hz, 25W
