Model: M800Ex

GeoBox simplifies projection mapping by letting users input patterns without editing video.

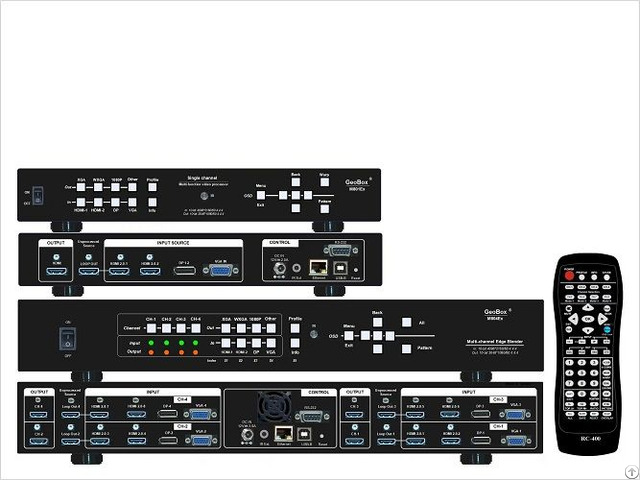

The M800Ex processor controls 1–4 projectors with modular models (M801Ex–M804Ex) and supports mapping, edge blending, warping, and stacking.

Multiple units can be cascaded for large-scale displays.

Specifications Each box has 1-4 processing modules.

- M801Ex: Single module processor

- M802Ex: Dual module processor

- M803Ex: Triple module processor

- M804Ex: Quad module processor Each processing module includes:

- Input: 2x HDMI 2.0b, 1x DP1.2a and 1x VGA

- Output: 1x HDMI 1.4

- Loop output: 1x HDMI 2.0b for cascade.

HDCP compliance: Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3, Output: HDCP V1.4.

Max.

input resolution: 7680*2160/30 Hz, 7680*1200/60 Hz, 4096*2160/60 Hz

Input supports progressive and interlaced RGB/YUV signal, 4: 4: 4 Chroma sampling, up to 30 Color bits.

Support non-VESA standard input timings for easy connection with various signal sources.

15 selectable Outputs: HDMI 1.4 up to 2048*1080/60, progressive 4: 4: 4 RGB.

2 frames system latency: 33ms (@V=60Hz)

New generation warp engine for geometry alignment up to 17x17 grid control points.

Maximum geometry adjustment up to 1200 pixels in both H&V directions.

Edge blending at 4 edges up to H=1920 pixels, V=1200 pixels with independent RGB gamma correction.

9 regions black level uplift to compensate light leakage from projector optical system.

Edge Mask following the result of geometry alignment up to 500 pixels.

Edge Mask with 8 control points up to 900 pixels in H&V directions at each control point.

Support Corner Wall adjustment in H&V at flexible location.

Support Linearity Grid Line adjustment for quick H&V line position alignment.

Embedded video wall function for image split, cropping and edge blend overlapped pixel setting.
