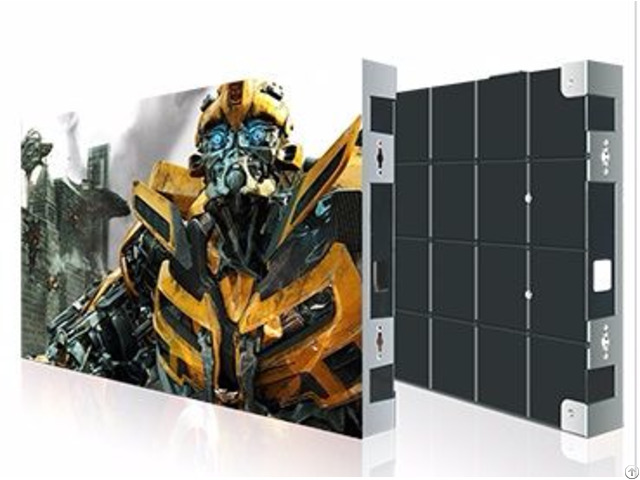

Ultra Fine Pitch Display Mc63 - China

Features:

Completely Front Maintenance

Redundant Power Supply & Signal Backup

IP65 Level Rear Protection & Clean Routing

Ultra-thin Mounting

Wireless Connection

Patented Anti-moire Mask Technology

Professional Image With High Refresh Rate

Low Brightness With High Gray Scale Technical parameters:

Specification MC6310 MC6312 MC6313 MC6314 MC6315 MC6316 MC6318 MC6320 MC6322

Pixel Pitch (mm) 1.0mm 1.2mm 1.3mm 1.4mm 1.5mm 4.6mm 1.8mm 2.0mm 2.2mm

Pixel Density (pixel/sqm ) 1, 000, 000 640, 000 562, 520 473, 630 406, 820 360, 000 283, 350 250, 000 202, 900

Cabinet solution 640*360 512*288 480*270 440*248 404*232 384*216 340*192 320*180 288*162

Cabinet size(mm) 640*360*58mm

Lamp type SMD0606;SMD0808;SMD1010, SMD1515; SMD2121

Pixel calibration Standard color and brightness color

Brightness 100cd-1200cd/sqm

Gray scale 12-16bit

Color temp.

2500-10000K

Drive mode Constant current

Frame frequency 50/60Hz, 120Hz

Refresh Rate Standard refresh rate: ≤1920; high refresh rate: ≤3840

Working voltage AC 110-240V;50/60Hz

Power consumption Average: 50-80W; peak: 130-180W

Lifetime(hours) 100, 000hours

Operating temp.

(℃) -20~60℃

Storage temp.

(℃) -20~60℃

Humidity range 10%~90%, non-condensing

Weight(kg) 7.4kg

Company Contact:

• Posted By: Shenzhen Seewor Technology Co.,Ltd

• Phone: 8675526785728

• Address: YIJING Building, Songbai Road 1008,, Shenzhen , Guangdong province, China

• Email:

• Website: http://www.seewor.com

• Business Description: Founded in 2007, Shenzhen Seewor Technology Co., Ltd. is a high-tech enterprise integrating design, R&D, production, sales and serving various kinds of finest LED display and module.

  Owning 6, 000 m2 workshop building, 150 experienced employees and import brand full-automation assembly lines to fulfill4, 000m2/Month output.

  Our LED display are widely used in indoor &outdoor media, for rental, for event, stage lease, superstores, entertainment places, stadiums, studio etc.

  We believe that a satisfied customer is the best advertising we can have, customers need can be achieved and satisfied only with high & whole-hearted dedication.

  Following the principle of quality first, service best, integrity and innovation, we keep devoting to deliverfinest products and all-around services for each customer all the time.

  Our customer service team also dedicated to providing timely advice and assistance of both hardware and software.

  Constantly seeking for the best solutions to our customers has long been planted deep in our core values.

  Our R&D team with over 10 years of solid experience in this field and innovation ability, makes present products standardization and more functional.

  The team has applied a lot of patents and having ability to build tailor-made solutions for our customers based on specific requests.

  All these capabilities ensure high quality andmeeting different markets and customers, wealso provide OEM&ODM service according to clients requirements.
