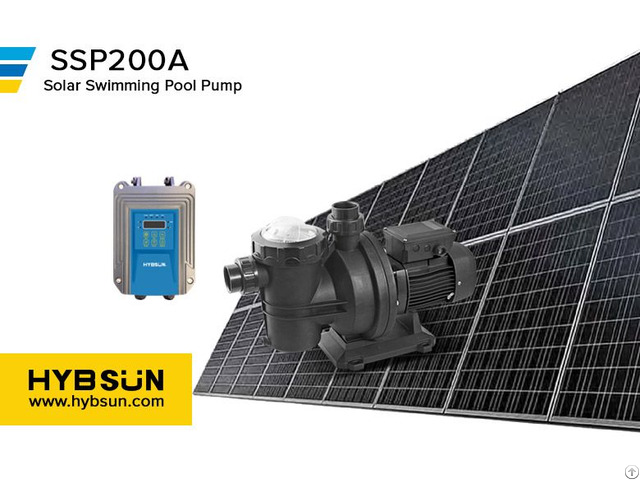

Hybsun Ssp Solar Swimming Pool Pump Ssp200a Material Ss304 - China

DC Solar Swimming Pool Pump

SSP series Solar Swimming Pool Pump

Permanent magnet brushless DC Solar water Pump

DC24V, DC72V, DC96V Solar pumping system

Power range: 200 - 1200w

Head range: 9 - 19m

Flow range: 6 - 31 m3/h

Pump Inlet/Outlet: 1.25"×1.25" , 2"×2", 3"×3"

Requiring the quantity of solar panel from 2 - 6 pieces

Poly / Mono 250/300 watt solar panel

Application

DC Solar surface pumps are fitted with a permanent magnet, brushless motor, Which enables the efficient use of energy from a wide range of supply options.

The pump system offers the perfect water supply solution.

This project products are mainly used in dry irrigation of agriculture.

It can be used for drinking water and living water.

The living condition could be much improved.

Characteristic

1 - Permanent magnet, brushless motor, saving energy and offering maximum efficiency.

2 - NSK bearing with alloy mechanical seal, offering the longer working life.

3 - MPPT function offers higher utilization rate of solar energy.

4 - Water proof and leak proof based on double water seal.

5 - Controller maximum's operating temperature: 60℃

6 - Featured function: MPPT function, Soft start function, Dry running protection, Adjustable speed function, Error wiring protection, Over/under-voltage protection, Overload protection, Over-current protection, phase-loss protection, High working temperature protection

Working conditions

1 - Power Supply: 1 - Solar panel | 2 - Storage batteries.

DC24 Solar pumps: 21-50V (VMP)

DC72 Solar pumps: 63-150V (VMP)

DC96 Solar pumps: 84-200V (VMP)

2 - Water temperature: ≤35℃

3 - PH value 6.5 ~ 8.0

What is solar SSP swimming pool pump?

HYBSUN solar SSP series solar swimming pool pump which get the power from the sun, you will never have an electric bill.

SSP Solar swimming pool pump can not only be used for pool water filtration, but for fountains, water features, pond aeration, circulating water for aqua culture or to irrigate small farms.

Which is a mechanical device designed to move a fluid by means of the transfer of rotational energy from impeller.

?Fluid enters the rapidly rotating impeller along its axis and is cast out by centrifugal force along its circumference through the impeller’s vane tips.

? The action of the impeller increases the fluid’s velocity and pressure and also directs it towards the pump outlet.

? The pump casing is specially designed to constrict the fluid from the pump inlet, direct it into the impeller and then slow and control the fluid before discharge.

What components does HYBSUN solar SSP swimming pool pump include?

HYBSUN solar SSP series swimming pool pump consists of PPO impeller, plastic pump head, plastic filter.

Aluminum motor casing, Brushless DC motor(BLDC motor), 3 meters, 3 cores, 1.5mm2 cable and controller with installation tools.

As accessories which include float switch, non-return valve, shrinkable tubes, adhesive tape, operation manual.

What are the advantages of HYBSUN BLDC motor?

HYBSUN BLDC motor which mainly consists of stator and rotor.

For the stator which consists of silicon steel sheet & high temperature copper wire.

Whose the max temperature is 180 degrees.

All winding automatically by machine, which can produce about 2000 pieces per day.

For the rotor which includes NSK bearing, SS 304 shaft and 40SH magnet.

Whose the max temperature is 150 degrees.

What are the advantages of HYBSUN solar pump controller?

MPPT function Maximum Power Point Tracking is electronic tracking - usually digital.

The charge controller looks at the output of the panels and compares it to the battery voltage.

It then figures out what is the best power that the panel can put out to charge the battery.

It takes this and converts it to best voltage to get maximum AMPS into the battery.

(Remember, it is Amps into the battery that counts).

Most modern MPPT's are around 93-97% efficient in the conversion.

You typically get a 20 to 45% power gain in winter and 10-15% in summer.

Actual gain can vary widely depending weather, temperature, battery state of charge, and other factors.

Soft start function HYBSUN controller control the the motor operation continues, operating power is gradually increased until motor reaches it;s maximum speed.

As a result, service lifetime of both the motor and controller and protection switch gear and prolonged.

Dry running protection HYBSUN solar surface pump’s controller that offers intelligent detection function.

Pump will be automatically power off once running without water for 30s.

Adjustable speed HYBSUN solar controller with adjustable speed function.

User could set different working speed to adjust water capacity and head according actual water demand to avoid water waste.

Meanwhile, which also reduces the mechanical wear of the motor as well as the start up loads on the PV array Self-protecting functions Error wiring protection

Over/under-voltage protection

Overload protection

phase-loss protection

High working temperature protection
