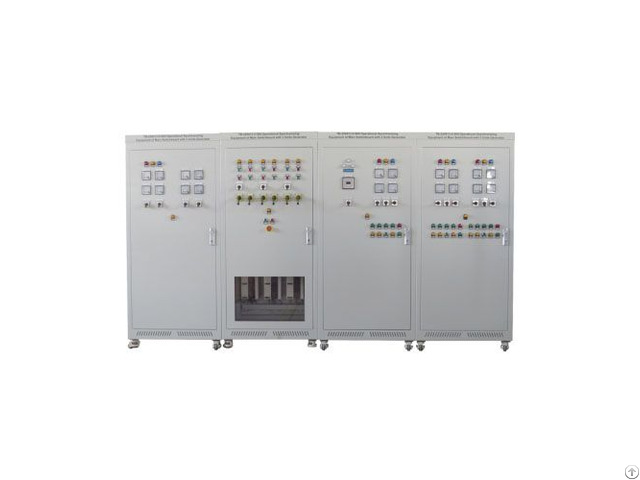

Tb 220413 V 004 Operational Synchronizing Equipment Of Main Switchboard With 3 Units - China

1 - Product overview

"Synchronous paralleling of generators" is an important content.

Through the practical training of this content, students can master the skills of manual quasi-synchronous paralleling of generators, and at the same time promote the transfer of theoretical knowledge to practical skills.

Through the practical training of generators paralleling Teaching to enable students to master the operation skills of manual quasi-synchronous paralleling of generators and further clarify the actual conditions of paralleling, precautions for paralleling operations, the internal relationship between paralleling timing and actual paralleling operations; further consolidate the principle of paralleling generators To improve the students' hands-on ability, apply the learned theoretical knowledge to the actual parallel operation, and improve the students' comprehensive quality.

2 - Equipment Features

The training platform adopts a sheet metal disc frame structure, which is simple and firm in structure, which ensures the overall strength of the equipment while reducing the overall weight of the equipment.

There are 4 universal wheels installed at the bottom, which can be easily moved.

The equipment has a good security protection system.

There is a grounding wire row inside the cabinet, and a leakage protection switch, an emergency stop button and reliable grounding protection measures are installed in the electrical circuit to ensure equipment and personal safety.

3 - Technical parameters

(1) Input power: three-phase AC220V±10% 50/60Hz

(2) Dimensions: 3200mm×800mm×1930mm (length×width×height)

(3) Weight: <700kg

(4) Working conditions: ambient temperature 10℃～30℃, relative humidity <75% (25℃)

4 - Equipment Composition

1 - Power supply indicating unit

2 - Load indicating unit

3 - No.

1 motor control unit

4 - No.

2 motor control unit

5 - No.

3 motor control unit

6 - Automatic mode control and emergency stop button unit

7 - Synchronization check unit

8 - No.

1 generator operating unit

9 - No.

2 generator operating unit

10 - No.

3 generator operating unit

11 - Three generating sets

12 - Load Bank

5 - Experiment list

(1) Detection before power-on and running

(2) Starting of the drive motor

(3) Manual parallel operation

(4) Automatic parallel operation

(5) Use of load boxes
