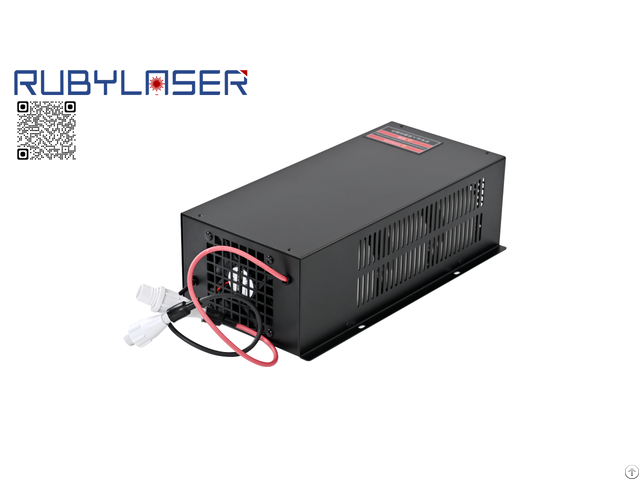

Ce 150wz Laser Power Supply For 300 450 600watt Folded Co2 Tubes - China

Specification

Input

Input voltage

AC220V±10%

(AC110V specified while order)

AC frequency

47~440HZ

Maximum input power

1000W

Maximum input current

4.5A

Output

Maximum output voltage

40KV

Maximum output current

40mA

(depending on the laser tubes of different manufacturers)

Efficiency

More than 90% (Full load)

Response speed

Less than 1ms

Control interface

TTL multilevel switching control, effective level can be high and low selection (see control wining diagram)

Insulation

input-output

AC 1500V 1 minutes not more than 10mA

input-shell

AC 1500V 1 minutes not more than10mA

Output-shell

Connection

Open Circuit Protection

Can be short circuit (requires a good grounding shell, while avoiding the positive electrode and the shell between the arc)

Environmental Requested

Working temperature

-10ºC~50ºC

Relative Humidity

Maximum 85%RH (non-condensing)

Dimensions (LxWxH)

305mmx142mmx95mm

Product Details

Long Life High Quality Zs-150wz CO2 Laser Power Supply

•Power Control Options:

Supports 0–5V analog or PWM signal control for precise output power adjustment.

•LCD Display Compatibility:

Can connect to an external LCD digital display module via network cable to show working current, status, and fault codes—ideal for both manufacturers and users.

•Grounding Protection:

Equipped with reliable grounding for enhanced operator safety.

•Open-Circuit Protection:

Can operate briefly in an open-circuit state to prevent damage from tube bursts.

•High Efficiency & Fast Response:

Features a zero-current half-bridge soft-switching circuit for efficient, stable performance with most 150W CO2 laser tubes.

Output current is adjustable via the LCD module.

Optional 4- or 8-channel display available.

•Effective Cooling System:

Dual high-quality Taiwan bearings ensure long fan lifespan and stable heat dissipation.

•Signal Interface:

Utilizes H/L/P/G/IN/5V green terminal board for signal input.

Constructed with an aluminum top and base, plus galvanized steel shell for durability.

•Simple Control Interface:

Supports high/low level and TTL signal control for laser on/off, with added safety switch for water and ventilation monitoring.

•Optional LCD Module:

Displays real-time output current, operating status, and common fault codes without opening the case.

Output current adjustable via rotary switch.

•Advanced Silicon Carbide Technology:

Replaces traditional transistors for higher efficiency, lower heat, and reduced failure rate—ideal for continuous operation in high-temperature environments.

•Reliable Circuit Design:

Simplified silicon carbide circuitry ensures stable output parameters, improving engraving and cutting quality.

•Automated Assembly Process:

Fully automated patch assembly and HD camera inspection reduce human error and ensure consistent product quality.

•Safety-Enhanced HV Cable:

Silicone-wrapped high-voltage

•WX means it supports LCD display screen

•WZ means it supports folded CO2 laser tube.

This ZS-150WZ laser power supply is specifically developed for high-power foldable CO2 laser tubes.

Several 150WZ CO2 laser power supplies can be connected together for CO2 laser die cutting machine.

Through isolation, they can form a combination of 300/450/600/750W to drive corresponding high-power CO2 laser tubes.

Optional LCD Display

An optional external LCD display is available to provide real-time visibility of operating current, system status, and fault diagnostics.

The display is equipped with a rotary control knob that allows users to conveniently and precisely adjust the output current.

The standard configuration supports a single control channel, while 4-channel and 8-channel versions are available for applications that require multi-channel monitoring or centralized control.
