Pa 4500da Big Power Welding Fume Extractor - China

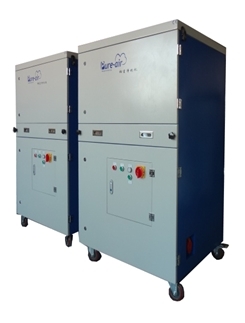

PA-4500DA Big power welding fume extractor

Imported high efficiency fiber filter, with automatic

blowback ash removal system, it can removal dust during

purification, not effect work efficiency.

Double universal

exhaust arms, use for fume filtration and purification for

two electric welding workstations nearby.

1, Operating Principle

1) Through the blower’s gravity effect, wedling fumes/dust

has been sucked to fume extractor’s air inlet through

universal dust hood, there’s fire barrier in the air

inlet, spark will be stopped by fire barrier once go through

it;

2) Fume & gas will enter to dust setting chamber.

Take use of

gravity & upgoing airflow, big particles firstly fell to

dust hopper, small particles fumes will becapture outside by

cartridge;

3) Clean gas been filtrated by cartridge filter and flow

into clean room, then exhuast outside from air outlet.

When

cartridge filter blocked, customer can removal it easily

and reuse after cleaningsurface dust of cartridge filter by

air compressor;

4) When the filter is about to blocked, connect compressed

air pipe, open the ash clean button, use compressed air to

blowback

surface dust of filter cartridge, then continue to use.

2, Main Components

♦ Metal Plate case;

♦ Universal exhaust arm;

♦ Vacuum hose with high temperature resistant;

♦ Dust hood(with air flow control valve);

♦ Fire barrier;

♦ Flame retardant HEPA cartridge;

♦ Pulse blowback Device;

♦ Clean room;

♦ Ash drawer;

♦ Glass down;

♦ Castors with brake;

♦ Blower & Electronic Control Panel, etc.

3, Product Feature

Specialized Blower and Moto, take prevent overload circuit,

which can prevent blower been burnout, high safety, stable

work performance.

Blower connected by high pressure hose, this

canmake sure fume extractor always in good working

condition.

Filter cartridge use Americanimported material,

long working life, it can filtrate dust particles less than

0.3μm, also have very good filtration effect to wet &

sticky dust.

Remarks: Welding fume extraction test under standard

environment, if air flow 4500m3/h means the achieved air

flow at the air outlet of the equipment .

Filtration area

30m2, means the area of consumable filter.
