Fresh Water Generator - China

The FWG-P mainly consist of evaporating and condensing chambers, ejector

equipped to achieve vacuum, fresh water pump for delivering distilled

water to storage tank, relevant accessories built-in complete unit.

Sea water supply pump is only loose part which will be installed independently in proper position.

Control cabinet with embedded salinity meter directly fitted on the body of the unit and the cabinet also can be arranged separately in where convenient for operation.

Information below for yr reference, we reserve the rights to optimize our design without prior notices.

Mode(T/D) FWG-5 FWG-10 FWG-16 FWG-20 FWG-30 FWG-50

capacity 5 10 16 20 30 50

Length(mm) 770 970 970 1160 1400 1400

Width(mm) 600 870 1150 1150 1250 1450

Height(m m) 960 1150 1150 1415 1550 1550

Dry weight(kg) 300 650 900 1150 1350 1450

Operation weight(kg) 350 700 950 1250 1450 1600

Main features of plate type fresh water generator:

-wide range of production capacity(1~50D/T)

-Compact design for easy installation

-standard parts for convenient replacement by crews

-highly compatible to variety heating sources:

Steam heating block, hot water, thermal oil heating block

-high quality titanic plate, 316LSS&Al-Bronze for other component.

Fresh Water Generator

Please see our contact information below

Company Contact:

• Posted By: China Deyuan Marine Fitting Co.,Ltd

• Phone: 8602362653917

• Address: No9-8 Xintai building,Shapingba District,Chongqing, chongqing , China

• Email:

• Website: http://www.deyuanmarine.com

• Business Description: CHINA DEYUAN MARINE FITTING COMPANY LIMITED is one of the leading and

  trusted supplier of marine equipment and offshore equipment in China.

  We do export business globally in the market for many years and have our owned shareholding factory, also establish good business relationship with other factories with high quality products, competitive price.

  Our products include:

  Marine life saving equipment: (immersion suit, life boat, inflatable boat, life raft, life jacket, life jacket light etc)

  Marine fire fighting equipment: (FIFI system, SCBA, EEBD, fire suit, heat insulation suit, fire extinguisher etc)

  Environment Protection Equipment: (Oily water separator, sewage treatment plant, fresh water generator, UV sterilizer etc)

  Marine Mooring Equipment: (marine anchor, anchor chain etc)

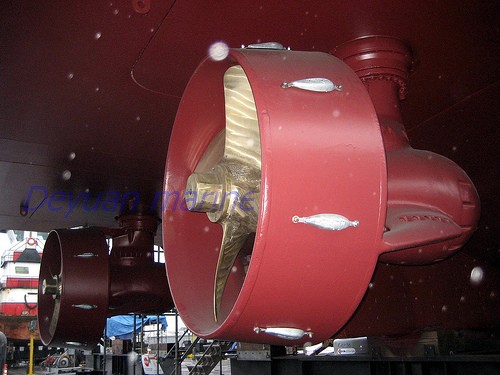

  Marine Power&Propulsion Equipment: (Tunnel thruster, marine propeller, marine shaft etc)
