Mother Board Recycling Equipment - China

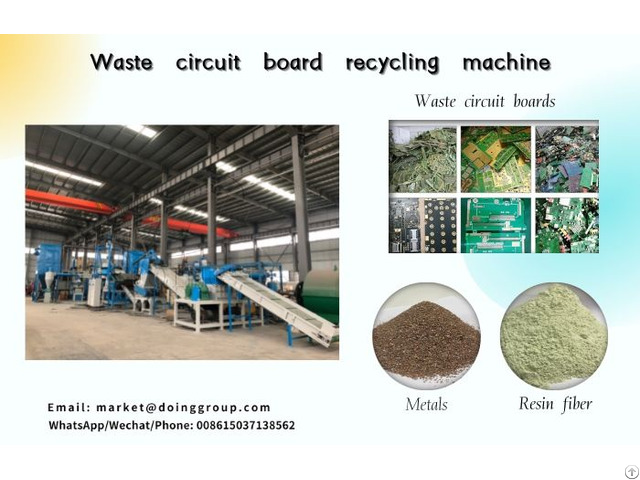

Mother board scrap recycling equipment also called PCB recycling machine or PCB granulator machine, which is specially designed for processing and recycling computer motherboards or PCB boards dismantled from household appliance to get mixed metals and non-metals.

The types of DOING mothe board recycling equipment:

DOING mother board scrap recycling equipment have different capacities: 100-150kg/h, 200-300kg/h, 400-500kg/h, 500-700kg/h, 800-1000kg/h, 1.5-2t/h.

And the configuration and equipment price are also different.

Customer can choose it based on the actual requirement.

Besides, if customer want bigger processing capacity, DOING engineer can provide customize solution.

The struction of DOING mother board recycling equipment:

The mother board recycling equipment mainly contains crushing system, separating system and dust removal system.

The working process of DOING mother board recycling equipment:

First, shredder and crusher will crush computer motherboard scrap into 4mm, and then eddy vibrating screen control the size of materials into 20-24 mesh.

With the use of air separation machine and electrostatic separation machine, mixed metals and non-metals will be separated.

The environmental protection configuration of DOING mother board recycling equipment: The mother board recycling equipment equippes with cyclone dust collector and pulse dust collector.

Cyclone dust collector can collect big size dust and pulse dust collector can collect small size dust below 0.4 nm.

The working environment is clean.

The advantages of DOING mother board recycling equipment: 1 - Good in material

The blade material of double-shaft shredder is H13 alloy, which has high hardness, high toughness.

And it will has longer using time than normal blade.

The blade material of crusher is 65Mn alloy, which has good toughness and high wear resistance.

2 - High separation rate

Using air separator + electrostatic separator twice separating, the separation rate can be up to more than 99%.

3 - Good effect on dust removal

Double dust removal system: cyclone dust collector + pulse dust collector.

The dust removal rate can be over 99.5%.

Recycling computer motherboard scrap is a very promising business.

Are you still hesitate? Good projects won't wait for you all the time.

Quickly contact us!

Company Contact:

• Posted By: Henan Doing Mechanical Equipment Co.. Ltd

• Phone: 15037138562

• Address: Room 1408, 14th Floor, Building 9, No.133 Yaozhai Road, Jinshui DistrictZhengzhou City, Henan Provin, Zhengzhou , China

• Email:

• Website: https://www.copperwirerecyclingmachinery.com/

• Business Description: Henan Doing Mechanical Equipment Co.

  Ltd is a comprehensive enterprise related to research, manufacture, marketing, technical support and installation service.

  We have been concentrating on developing and manufacturing many kinds of waste recycling machinery, include cable wire recycling machine, Printed circuit board (PCB) recycling machine, Aluminum plastic composite recycling machine, medical blister pack recycling machine, radiator recycling machine, waste tire and plastic recycling machine, etc.

  All the equipments adopt green technology which have no pollution to the environment
