Plastic Cascade Mini Rings For Industrial Applications - China

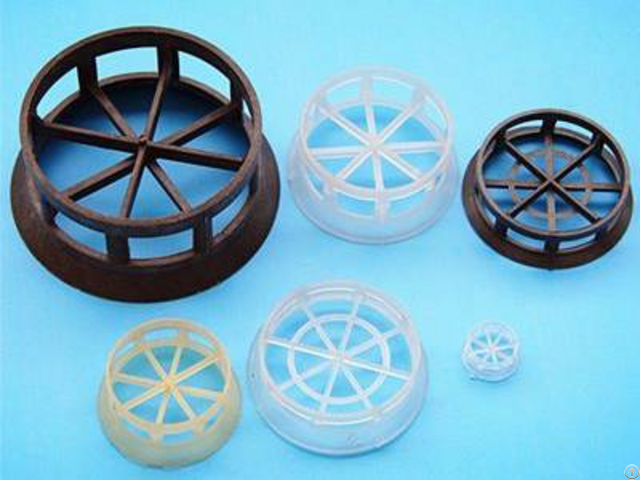

The Plastic Cascade Mini Ring (CMR) packing features a height-to-diameter ratio of 1: 2 or 1: 3 - This design includes a cone-shaped flange at one edge, which reduces gas flow resistance, increases flow rates, and enhances the mechanical strength of the packed bed.

The unique structure ensures that gas and liquid are evenly distributed, increasing the contact area between the two phases and thereby improving mass transfer efficiency.

Made from corrosion-resistant materials such as Polyethylene (PE), Polypropylene (PP), Reinforced Polypropylene (RPP), Polyvinyl Chloride (PVC), Chlorinated Polyvinyl Chloride (CPVC), and Polyvinylidene Fluoride (PVDF), CMR packing is ideal for various industrial applications requiring heat and chemical resistance.

Developed by the British company MTL Ltd, CMR packing deviates from the traditional equal-length and diameter design.

Its cone-shaped flanging reduces the distance gas must travel along the wall’s outer surface, thereby minimizing resistance and increasing void volume for more efficient gas flow.

This advanced packing is well-suited for industries where high performance, durability, and cost-effectiveness are essential.

The unique combination of materials and design makes it a versatile choice for a wide range of applications.

Applications:

Absorption and stripping processes

Environmental protection applications

Various industrial operations requiring high efficiency and corrosion resistance

Performance Features:

High Capacity, Low Pressure Drop: The low aspect ratio of the packing increases capacity and reduces pressure drop.

The vertical orientation of the packing axes facilitates free gas flow through the bed.

Efficient Design: The reduced pressure drop and high capacity allow for smaller column diameters and blower sizes in new installations, optimizing space and cost.

Enhanced Fouling Resistance: The open structure and vertical axis design help prevent fouling by enabling solids to be easily flushed through the bed with the liquid phase.

High Mechanical Strength: The ring-and-spoke construction and preferred vertical orientation provide excellent mechanical strength, making it suitable for use in deep beds.
