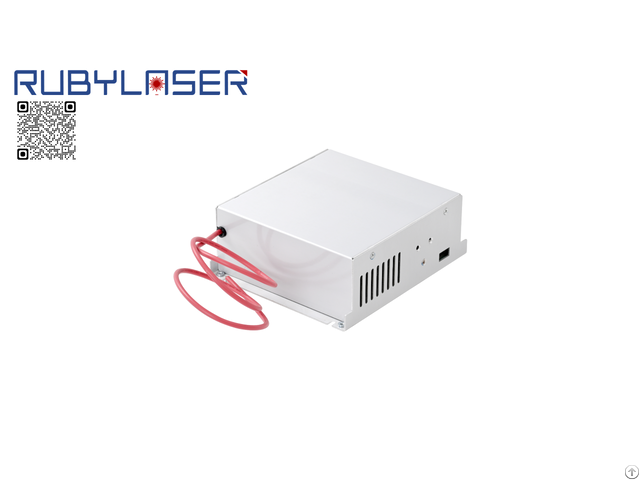

Ac220 110v 40watt Co2 Laser Power Supply For Engraving Cutting - China

RUBYLASER: Sales @ rlaserpowersupply.

com

What app: +86---152 5314 6378

Specification

Input

Input voltage

AC220V±10%

(AC110V specified while order)

AC frequency

47~440HZ

Maximum input power

350W

Maximum input current

3A

Output

Maximum output voltage

25KV

Maximum output current

20mA

(depending on the laser tubes of different manufacturers)

Efficiency

More than 90% (Full load)

Response speed

Less than 1ms

Control interface

TTL multilevel switching control, effective level can be high and low selection (see control wining diagram)

Insulation

input-output

AC 1500V 1 minutes not more than 10mA

input-shell

AC 1500V 1 minutes not more than10mA

Output-shell

Connection

Open Circuit Protection

Can be short circuit (requires a good grounding shell, while avoiding the positive electrode and the shell between the arc)

Environmental Requested

Working temperature

-10ºC~50ºC

Relative Humidity

Maximum 85%RH (non-condensing)

Dimensions (LxWxH)

142X145X60mm

Product Details

Long Life Time Laser Power Supply for CO2 Laser Cutting

•Application: Acrylic sculpture, cut; Fabric sculpture, cut; Rubber sheet sculpture, cut, etc.

•Easy control of laser power: Both 0-5V analog signal and PWM signal can be used to control laser power output.

•Good compatibility: This 40W CO2 laser power supply is special designed for most brand 700mm, 800mm or 850mm 30W /40watt CO2 laser tube.

It mainly is used on mini laser carving stamp machine or laser engraver machine.

•Fast response speed and effect.

•Easy Control: The start and stop of laser power can be easily controlled by TTL level.

And it has protection switch to test the external water status, ventilation, etc.

•This CO2 laser power supply can take feedback interface which can be used in closed-loop control and testing the working current of laser power.

•The 40watt laser power supply has open circuit protection: Under the condition of good protective earth, this 40W CO2 power supply 'can work in open-circuit for a short time, which can protect power supply from damage.

It can extend power supply's service time.

•Dramatically lengthen the life time of sealed glass type CO2 laser.

tube

•This ZS-40W CO2 power supply adopts ordinary H/L/P/G/IN/5V for control signal output and uses blue blue aluminum case.

•It uses the latest silicon carbide to replaces traditional transistors.

The silicon carbide has high efficiency, low heat generation and low failure rate characteristics.

Which make laser power supply more suitable for long-time uninterrupted works in hot environment.

•The silicon carbide reduces circuit's quantity, which reduces failure rate and keep consistency in output parameters.

Enable laser power supply have better engraving and cutting effects

•It adopts patch assembly process, which is fully automated and standardized It uses HD cameras to detect circuit boards, assembled components and soldering effects.

The two methods reduces the possibility of human error causing unqualified laser power supply.

•It adopts silicone tube to wrap output HV cable to prevent electric sparks from splashing and protect operators and equipment, which allowing laser power supply work normally in humid environments

•90-270V Voltage stabilizer is optional.
