Enteromorpha Salvage Collection Device - China

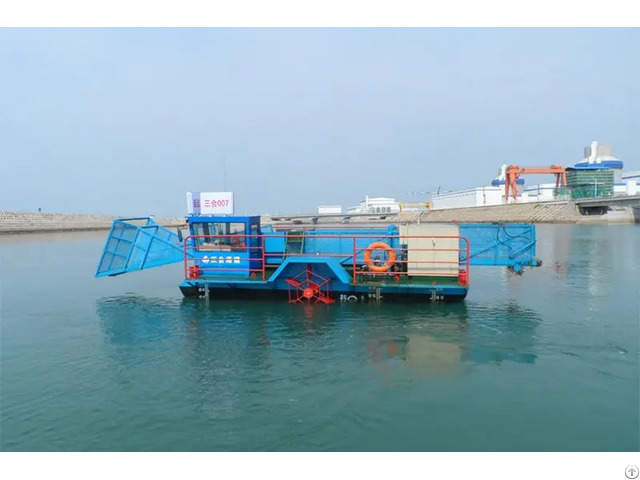

1 - This ship is a steel ship with two ends and a single pontoon.

It adopts transversal ribs and longitudinal frame structure, which completely conforms to the requirements of hydromechanics and reduces the resistance to the lowest.

Thus the efficiency of the ship is improved.

2 - This ship is mainly used for collecting and salvaging the enteromorpha in lakes and rivers.

At the same time, the enteromorpha can be filtered, draining, and can be completed by one man via controlling the control desk in the operation room, which is easy and convenient.

3 - The enteromorpha collecting inlet is equipped at the bow, and a sundries filter drum is equipped inside, which can prevent the suction of big garbage and avoid damage of enteromorpha collecting pump.

4 - The enteromorpha collecting inlet can adjust collecting depth according to requirements via a hydraulic jacking device.

Technical Parameters

Length Overall 11.0m Total Width 3.5m Total Depth 2.43m

Pontoon Length 6.0m Pontoon Depth 0.9m Pontoon Width 2.5m

Full Loaded Draft 0.65m Empty Loaded Draft 0.45m Collecting Depth 0.8m

Collecting Width 2.0m Displacement 8.9t Loading Capacity 2.7t

Battery 550A Propelling Method Paddle Wheel Working Speed 2.5km/h

Cruising Ability 24h
