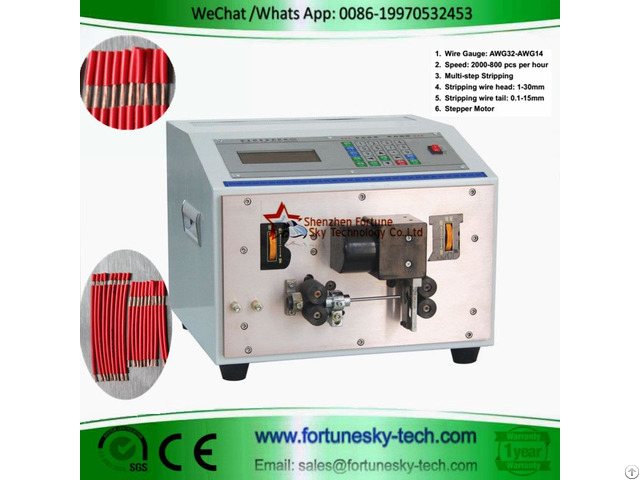

Full Or Partial Automatic Wire Stripping Machine - China

This full or partial automatic wire stripping machine for stripping wire from 32AWG to 14AWG uses a hybrid drive microcomputer full LCD operating system, cutting, stripping, one time completion, but also the front half stripping with twisted wire, protect the integrity of the wire, special wire can instantly change the size of wire specifications.

Model No.

BJ-600 BJ-650 BJ-800 BJ-880

Main Function Cut wire, both-ends stripping Cut wire, both-ends stripping, intermediate strip, (wire twisting for BJ-880)

Cutting wire core 0.1-4.0mm2

(30AWG-14AWG) 0.1-4.0mm2

(30AWG-14AWG)x2 0.1-2.0mm2

(32AWG-14AWG)x2 0.1-2.5mm2

(30AWG-14AWG)x2

Processing Speed(decided by wire material) 2000-8000 pcs/hour 4000-16000 pcs/hour 2000-8000 pcs/hour

Cutting Length 0.1-9999.9mm

No.

Of Intermediate Stripping 0 13

Stripping Length Strip head: 1-30mm

Strip tail: 0.1-15mm Strip head: 1-30mm

Strip tail: 0.1-30mm Strip head: 1-50mm

Strip tail: 0.1-30mm Strip head: 1-30mm

Strip tail: 0.1-20mm

Accuracy of outlet inlet motor Mute hybrid stepping motor 0.1mm per stepping

Other functions Automatic wire inlet & outlet, timing

Driving Mode 4 wheels

Dimension(mm) 380x250x320 420x297x345 420x297x345 420x297x345

Net Weight 25 28 32 35

Blade Material Import Tungsten Steel/High speed steel
