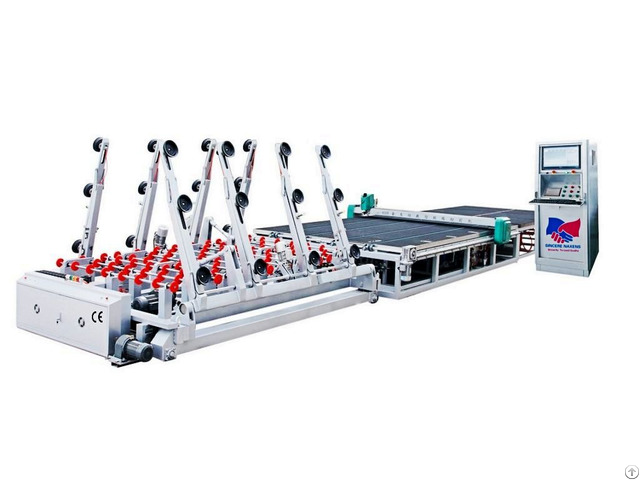

Glass Cutting Machine Production Line - China

1 - SN-4028 Full-auto glass double-arms and single position loading machine

2 - SN-4028 Full-auto CNC glass cutting machine

3 - SN-4028 Full-auto air-cushion glass breaking machine I.

SN-4028Full-auto glass double-arms and single position loading machine The max Loading glass size: 3700mm * 3700mm * 900mm

Loading glass thickness: 3—19mm

Loading cycle: 40—70s (adjustable)

Loading weight: 1500kg

Machine height: 850—950mm

Transfer speed: 0—45m/min

The machine power: 9KW/380V/50HZ(customized)

Loading deep: 700mm​ II.

SN-4028 Full-auto CNC glass cutting machine Cutting thickness: 3-25mm

Cutting accuracy : < 0.20mm/m

Cutting speed: 0-180m/min (adjustable)

Equipment dimension: 5000mm * 3800mm * 900mm

Table-board size: 3700mm * 2800mm

The max cutting size: 3660mm * 2800mm

Driving system: X-Y-Z axial by servo motor (made in Japan YASKAWA )

Cutting wheel holder: cutting wheel 360 rotation, Glass location: Red-X Scanning, transfering belt

Oil supply: automatic oil injection

Conveying: air-cushion (floating) and transfering belt

Operator: one person III.

SN-4028 Full-Auto Air-Cushion Glass Breaking Machine Table-board size: 6500mm * 3500mm * 1100mm

Breaking pole: the shape like “十”and including gas pump​

Power: 4.4kw

Table-board: black felt made in Corea

Table top plate: high-standard fire and water resistant board

Irregularity< 0.20mm/m​​

Other types have SN2621FC cutting line and cutting machine, SN6133FC cutting line and cutting machine.
