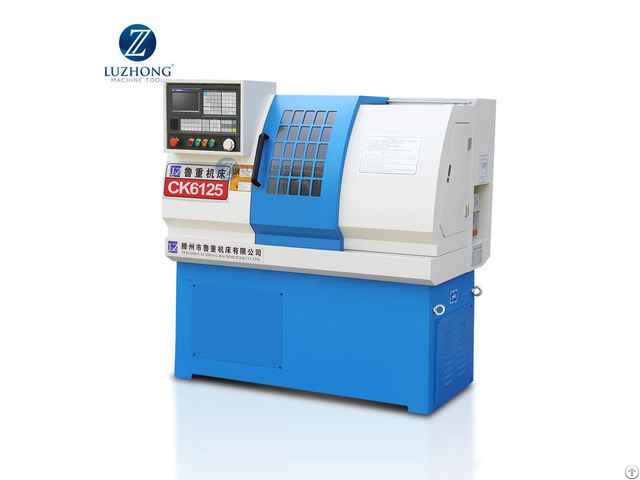

Mini Cnc Ck6120 Ck6125 Small Lathe Machine For Sale - China
price: 5000.00 Dollar US$
Specifications
specifications units ck6120 ck6125
swing over bed mm 190 230
swing over cross slide mm 80 125
distance between centers mm 200 200
spindle bore mm 37 50
spindle bore taper - mt5 mt5
spindle nose type - a2-4 a2-4
spindle speed steps - stepless stepless
spindle speed range rpm 150-2500 150-2500
turret/tool post - gang type gang type
tool size mm 16 x 16 16 x 16
x axis travel mm 300 300
z axis travel mm 320 320
x axis rapid traverse mm/min 8000 8000
z axis rapid traverse mm/min 10000 10000
tailstock quill diameter mm Φ45 Φ45
tailstock quill taper - mt4 mt4
tailstock quill travel mm 50 50
main spindle motor kw 3 3
coolant pump motor kw 0.09 0.09
machine weight kg 800 850
overall dimension mm 1500x1000x1600 1500x1050x1750
Company Contact:
- Posted By: Shandong Luzhong Machine Tool CO., LTD
- Phone: 86-0632-5083086
- Address: East of Luban Avenue,Tengzhou City,Zaozhuang City,Shandong Province,China, Tengzhou Shandong Province China, In the business, China
- Email:
Published date: May 13, 2021
- Business Description: -Machine center
-Lathe machine
-CNC lathe machine
-Milling machine
-Drilling machine
-Band sawing machine
-Boring machine
-Hydrulic press machine
-Metal forging machine(Air hammer,Slotting machine,Shapping and Gear hobbing machine)
-Sheet metal machine(Bending machine,Shearing machine,Rolling machine,Combined punching and shearing machine,Combination of Shear Brake Roll Machine)
Whatsapp/wechat: +86 15163203317
Email: crom@lu zhongmc.
com
