Pcd Grooving Tool For Pistons Machine - China

PCD Grooving Tool for Pistons ●Enables high-speed machining while maintaining longer tool life.

●Provides consistent products, simplified quality control, and lower cost.

●Maximum stability.

●Maximum economy.

●Maximum feed/speed.

●Suitable for general and optimized final machining Specification Introduction to PCD Grooving Tool for Pistons Pistons are made from aluminium with high silicon content, resulting in a very abrasive material.

High-silicon aluminum alloy has higher hardness and wear resistance than other aluminum alloys.

When cutting, the cutting tool alternately cuts soft aluminum-based and hard silicon particles, the carbide insert are easy to wear and also easily produce BUE, which will affect the roughness and processing accuracy.

In order to avoid the BUE and work hardening, the cutting edge must be sharp and the cutting edge must be smooth.

PCD tool just meets all these requirements.

Machining such material requires high wear resistant tooling, such as cutters and inserts made of PCD.

Why is it recommended that you use PCD grooving tools to machine pistons? (1) The hardness of PCD can reach as high as 8000HV, which is 8 to 12 times of cemented carbide.

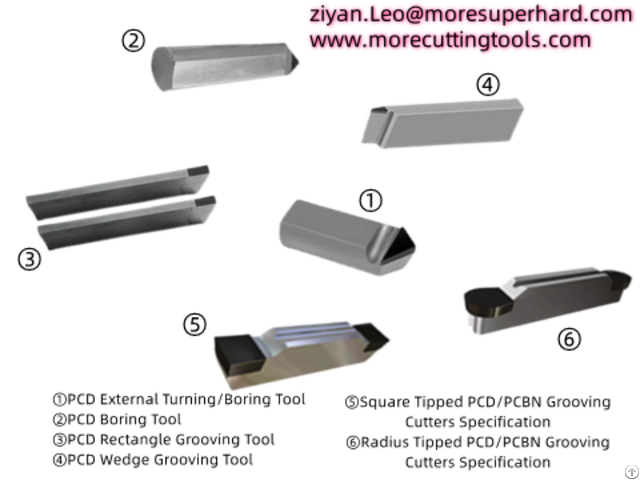

(2) The thermal conductivity of PCD is 700W/mk, 1.5 ~ 9 times of cemented carbide, even higher than PCBN and copper alloy; (3) The friction coefficient and expansion coefficient of PCD are small; (4) PCD and non-ferrous metals and non-metallic materials, the affinity between small; (5) Sharp edge and blade surface roughness More SuperHard Products Co., Ltd. offers the widest array of standard tooling and the broadest range of solutions on machining pistons for precision grooving, turning, boring, and internal and external facing and chamfering.

More SuperHard Products Co., Ltd. PCD and PCBN tools for machining pistons are successfully used for machining aluminum and cast iron materials pistons.

When machining pistons you may encounter these problems: Ⅰ.

How to Reduce cycle times for grooving applications？ Ⅱ.

How to Achieve reliable and efficient production when roughing the piston axis bore？ Ⅲ.

How to Finish the piston axis bore while maintaining quality, productivity, and reliability requirements？ Ⅳ.

How to Copying the face with maximum productivity and reliability？ Ⅴ.

How to Ensure high productivity during turning of the outer diameter and face？ Choose More SuperHard Products Co., Ltd. and we can help you solve these problems！ PCD grooving inserts provide the highest metal removal rates for this application.

Your benefits include robust performance, high process security and shorter cycle times.

Company Contact:

• Posted By: MORE SUPER HARD PRODUCTS CO., LTD

• Phone: 15093273245

• Address: Room 0906, 9th Floor, Unit 2, No.11 Complex Building, No.171 Zhongyuan Middle Road, Zhongyuan Distri, Zhengzhou , Henan , China

• Email:

• Business Description: MORESUPERHARD adheres to the brand concept of "MORE THAN GRIDING", insists on a professional and serious attitude, becomes a leader company in the superhard tool solution industry, and is the first choice for customers from different countries!

  MORESUPERHARD is fully developing the international market.

  We adhere to the service concept of creating value beyond the contract for customers with standardized, professional and "tailor-made" services.

  "MORE CUTTING TOOLS" is one project team under More Super Hard Products Co., Ltd. We manufacture and sell standard PCD (Polycrystalline Diamond)/CBN (Cubic Boron Nitride)/MCD/CVD cutting tools, PCD reamer, drilling tools, milling tools, tool arbor, involving aerospace, automotive, medical, electricity, energy, hightech and other industries.

  We are always by your side to help you meet and overcome every metal cutting challenge you encounter!
