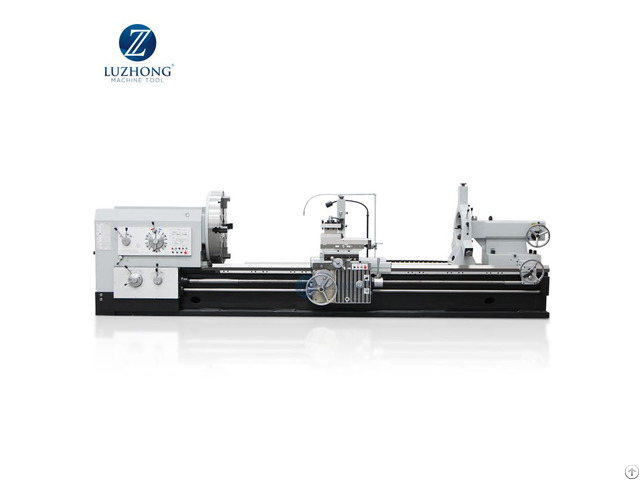

Q1322 Metal Manual Pipe Lathe Cutting Grooving Threading And Manufacturing Of Pre Insulated Pipes - China

The main performance characteristics：

Big spindle bore and double chuck allows clamp and process big diameter pipes;

Integral machine bed adopts high strength iron to relize high rigidity and precision;

Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;

Equiped with taper guide bar device this enables the machine to process taper threads.

Application:

Q1332 horizontal pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread, as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks, this machinery is equipped with taper guide bar device which enables this series to process taper thread.

This series lathe machine is widely used in industries including petroleum exploiting, coal and minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.

Standard accessories:

Tool post, Tailstock, Chuck, taper guide bar, Lighting lamp, Coolant pump, Rear support bracket, Pad iron etc.

Optional accessories:

Digital readout, Chuck, Faceplate, Chasing dial, Center rest, Signal light, Protective cover(lead-screw, chuck, tool post), and Grinding attachment etc.

Product main technical parameters:

SPECIFICATIONS Units Q1322

Swing over bed mm 630/800

Swing over cross slide mm 340/520

Distance between centers mm 1500/3000

Pipe threading range mm 50-220

Guideway width mm 550

Max.

load capacity kg 3000

Spindle bore mm 230

Spindle speed steps - VF.

4 steps

Spindle speed range rpm 20-550

Chuck mm φ520 4-jaw manual

Turret/tool post - Manual 4 position

Tool shank size mm 32 x 32

X axis travel mm 320/420

Z axis travel mm 1350/2850

X axis feed steps/range mm/r 22/0.02-0.45

Z axis feed steps/range mm/r 26/0.07-1.33

X axis rapid traverse mm/min 2300

Z axis rapid traverse mm/min 4000

Metric thread kinds /range mm 1-15

Inch thread kinds /range T.P.I 14-1

Tailstock quill diameter mm 100

Tailstock quill taper - MT5

Tailstock quill travel mm 250

Main spindle motor kw 11

Rapid traverse motor kw 0.3

Coolant pump motor kw 0.125

Weight for 1500 kg 4500

Weight for 3000 kg 5700

Dimension for 1500 mm 3700x1650x1550

Dimension for 3000 mm 5200x1650x1550
