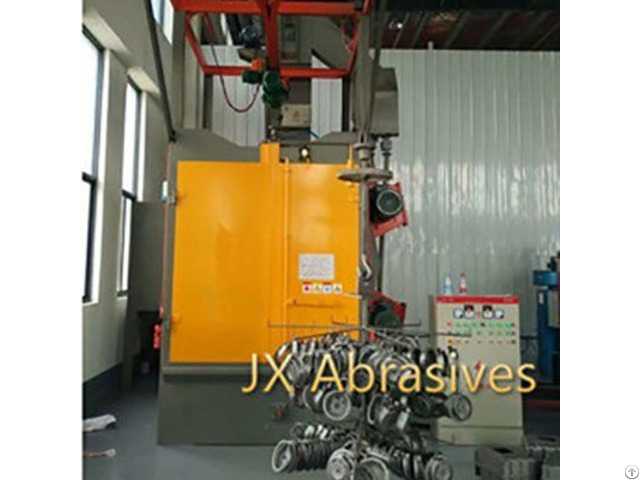

Hanger Shot Blasting Machine For Auto Parts - China
price: contact company for price
The hook type shot blasting machine is used in the surface treatment of small, medium or large auto Parts.
The Hanger Shot Blasting Machine for Auto Parts is used in the surface treatment of small, medium or large auto Parts.
It is made for increasing roughness of surface and shot peening to raise fatigue strength.
Main Technical Parameter:
Size of Blasting Jobs:
Max.
Size for work piece (diameter*height) Ф1100×1200mm.
Blast nozzles(2 set) diameter of impeller: ф250 mm.
Rotating speed: 2900r/min.
Max.
volume for blasting: 2×180kg/min.
Power: 2×11kw.
Lifting Hook:
(double) Max.
hangering weight: 1000kg.
Speed of autorotation: 2.8m/min.
Self-Rotating power: 0.55kw.
Running speed: 20m/min.
Walking power: 0.2kw.
lifting speed: 8m/min.
Lifting power: 1.5kw.
Pulse Jet Type 1 set:
Dust Collector Model SXLT-9.
Cartridge Filter: Φ325 × 660 mm.
Cartridge Filter Quantity: 9pcs.
Air Volume: 9500m3/hr.
Centrifugal Air Fan: 7.5kw.
Company Contact:
- Phone: 86-595-86588998
- Address: No.35 Furong South Road, Meishan Town, Nanan , Fujian , China
- Email:
- Website: https://www.jxabrasives.com
Published date: March 9, 2017
- Business Description: JX Shot Blasting Machine Manufacturer Co., Ltd.(JX Abrasives) is specialized manufacturer of Roller Conveyor Shot Blasting Machine; Hook Shot Blasting Machine; Tumble Shot Blasting Machine; Table Machine; Blasting Room; Steel Shot; Steel Grit; Cut Wire Shot.
These products have a lot of materials, configurations, and sizes that can meet all kinds of requirements.
Our products widely applied in the aerospace, automotive, shipyard, railway, forge and foundry, pipe, steel structure, aluminum and other industries for surface finishing.
For more detailed information, please visit: http: //www.
jxabrasives.
com
