Tumble Steel Belt Shot Blasting Machine For Middle And Small Castings - China

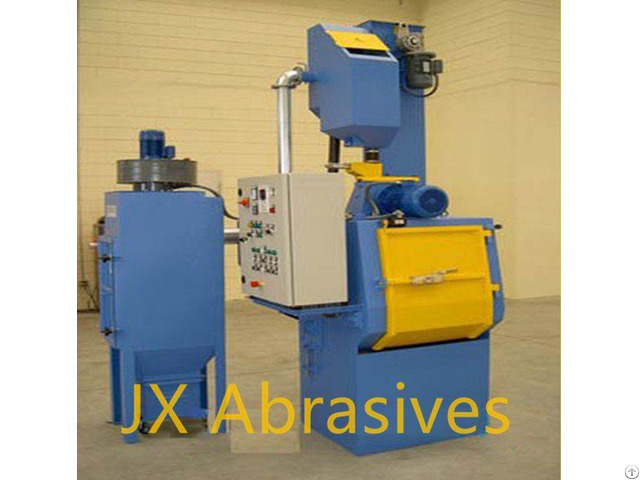

Shot Blasting Machine Supplier JX Offers Tumble Steel Belt Shot Blasting Machine for Small Castings and Middle Castings, Suitable for Clean-up Lines.

Application:

1 - Used for surface cleaning, rust removing and surface intensification of various middle and small size castings, forging products and workpieces.

2 - Suitable for different production scale and can also be used in conjunction with the continuous conveyor components to form the production of clean-up lines.

3 - Advanced design, reasonable structure

4 - Little energy consumption and high efficiency.

Specification:

1 - Workpiece Maximum Dimension: **mm

Maximum Weight: 20 kg/pc Blast Cleaning Effect (GB8923-88): Sa2.5

Surface Finishing Roughness: 10~50 mu

Cleaning Efficiency Requirements: ＞ 1500 kg/load

Blast Cleaning Productivity: It relates to the shape of workpiece.

Generally, cleaning workpiece surfacial area ≤1m2/min.

Main Machine Outline Dimension(L*W*H): 4300mm x 3500mm x 6200mm

Blasting Chamber: Open Inlet(W*H) 1270x1200mm

Electric Control System: PLC Brand: Simens

Noise Level: ≤85 dB

Dust Exhausting Consistence: ≤80 mg/m3 2 - Blasting System

1) Blasting Chamber: Steel Structure, Material: Q235

Abrasive-resistant Guard Plate Material: ZGMn13

2) Blast Wheel Model: 180-4RK

Blasting Capacity: 460 kg/min.

Power: 30 kw

Quantity: 1Set

Blade Lifespan: ≥500hr.

Projection Velocity: 80~90m/s Impeller Revolving Speed: 2450r/min.

3)Abrasive Recovery System 1) Screw Conveyor Filling Capacity: 40 Ton/hr.

Screw Diameter: 200mm Motor Power : 3kw 2)Abrasive Dust Separator Separating Capacity: 40Ton/hr.

Separating Air Speed: 4~5m/sec.

Separating Type : Full Curtain Flow Type

Power: 2.2 kw 3)Bucket Elevator Lifting Capacity: 40Ton/hr.

Lifting Speed: 1.21m/sec.

Motor Power : 4 kw 4) Abrasive Recovery System

Vibrating Conveyor Conveying Capacity: 40 Ton/hr.

Motor Power : 1.5kw 5)Blasting Cabinet Door Power-driven Motor Power: 1.1kw 6) Loading System power-driven Motor Power: 3kw 7) Abrasive Control System

Abrasive Grain Diameter: φ0.3~0.4mm

Initial Filling Capacity: ≈1000kg

3 - Tumble Steel Belt System Dynamic Loading Capacity: 1500kg

End Disc Diameter : φ1092mm

Tumble Belt Revolving Speed: 5.6m/min.

Distance Between End Discs: 1245mm

Driving Motor Power: 2.2kw

Drive Mode: Chain Driving

4 - Dust Collecting System(Cartridge Filter) Air Fan Model No: 4-72NO4.5A

Air Fan Power: 7.5 kw

Dust Collecting Efficiency: ＞99.9%

Pressure Loss: 2532-2143 Pa

Air Ventilation Capacity: 8600m3/hr.

Quantity of Filter: 12pc

5 - Compressed Air Consumption

Abrasive Supply Valve: 0.1 m3/min.

Dust Collecting Blow-back Dust Cleaning: 1 m3/min.

Total Air Consumption: >1.5 m3/min.

6 - Total Power: 54.5kw This machine is not a standard machine, any parameters can be customized according clients' requirements, so any further information please contact with us, our skilled engineer team will give you the most professional and cost-effective solutions
