Type 11v9 Diamond Or Cbn Wheel - China

Type 11V9 Diamond or CBN WheelDiamond and CBN Cup Wheels

Type 11V9 Diamond or CBN Wheel 

Diamond Wheel 11v9 For Flute Grinding

CBN Cup Grinding Wheel (11V9) 

Detailed introduction to resin diamond grinding wheel:

Description of the resin diamond grinding wheel: The resin bond diamond wheels are mainly used for grinding tungsten carbide and non-metal materials.

Various kinds of dimensions and shapes are available, such as flat shapes, cup shapes and dish shapes, etc.

Application of the resin diamond grinding wheel: Rough diamond polishing, PCD/PCBN tools grinding, Tungsten carbide grinding, Glass grinding

Feature/Benefit of the resin diamond grinding wheel

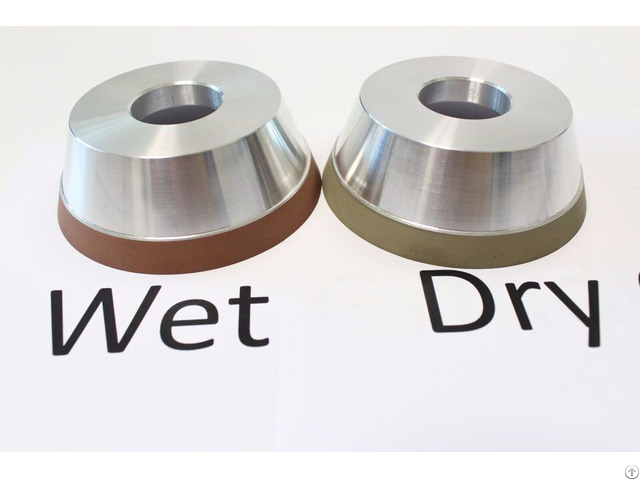

Good free-cutting, Good Abrasion Resistance, Availability in a broad range of applications in Dry and Wet Condition, Improved Heat Resistance.

Specification

D T H W X

75 30 20 2 10

75 30 20 3 10

100 35 20 2 10

100 35 20 3 10

125 40 20 2 10

125 40 20 3 10 Advantages:

1 - high-new technology

2 - High working efficiency;

3 - Amazing performance;

4 - Competitive price;

5 - Various types and sizes available;

6 - Considerate after-sell service.

7 - Manufacturer direct sell.

T H W X V° Specification for tungsten carbide TN Stock Specification for HSS TN Stock

Application:

-11V9 diamond grinding wheel used for sharpening and finishing of back and side surface of hard alloys.

*The abrasive layer of the 11V9 diamond &CBN grinding wheels can be synthetic diamond powder and CBN in resin, metal or vitrified bonds.

D (mm) X (mm) U (mm) H (mm) T (mm) E (mm) K (mm) J (mm)

50 1, 5 · 2 6 · 10 Up on request 30 10 20 28 3 6 · 10 30 10 20 28

75 1, 5 · 2 6 · 10 30 10 40 53 3 6 · 10 30 10 40 53

95 3, 2 6 · 10 35 10 55 70

100 1, 5 · 2 6 · 10 35 10 55 75 3 6 · 10 35 10 55 75

125 1, 5 · 2 6 · 10 40 10 · 12 75 96 3 6 · 10 40 10 · 12 75 96

150 1, 5 · 2 6 · 10 50 10 · 12 90 114 3 6 · 10 50 10 · 12 90 114

Standard S =70° 45° < S < 70° - possible
