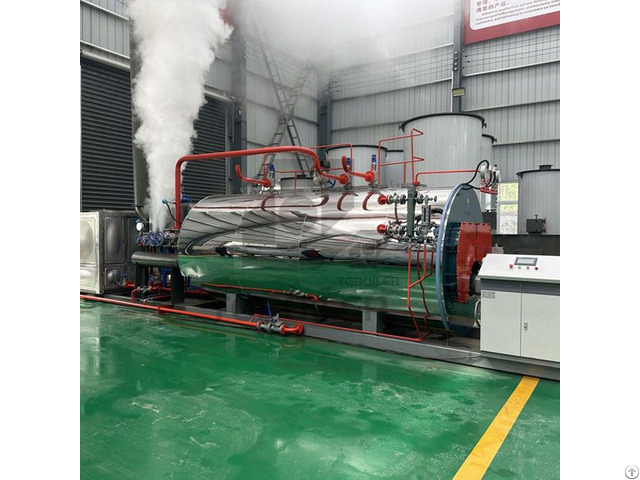

Skid Mounted Type Wns Series Steam Boiler - China

Steam Capacity: 300 to 6, 000 KG/H

Boiler Power: 20 to 384 HP

Pressure: ≤13 Bar

Fuel: Natural Gas, #2 Light Oil, Heavy Oil Brief Introduction WNS series skid-mounted gas and oil fired boiler is classical shell type boiler, contains boiler proper, burner, water level/ pressure control system, economizer, exhaust flue system, valves, etc.

The complete system is well mounted on the basement, user only need to supply water, electricity, fuel, then can start the boiler immediately.

Product Application Textile, Garment, Food & Beverage, Chemical Industry, Cement Curing, Disinfection, etc.

Main Features Compact Structure & High Efficiency: All system is well mounted on the base, its system is portable.

The users no need to consider the pipeline installation, wire connection.

After receiving the goods, just supply water, electricity, fuel.

It is equipped with renowned brand burners (BALTUR, RIELLO, HOFAMAT, ECOFLAM), also finned tube type economizer can ensure boiler’s thermal efficiency up to 95%.

High Quality Control: In manufacturing processes, we has adopting steel strength test, automatic steel cutting/ plate rolling/ welding, 100% x-ray welding check, magnetic particle check c-scan ultrasonography Ultrasound check, fluorescent penetrating check, hydraulic (water) pressure test, boiler thermal efficiency test, etc, to make sure all finished products is qualified.

Automatic Safe Operation: WNS series boiler is equipped automatic burner ignition, automatic water-level control, automatic pressure control, automatic interlock chain stop protection, free settable working pressure, free settable ON/OFF time, visible system’s working states on screen.

Easy Maintenance: WNS series boiler uses full water back tube-sheets instead of traditional dry back tube-sheet, can avoid the dry-fire broken, reduce the range of steel cooling contraction and hotting expansion.

Also, we adopting openable smoke-boxes, users can replace the broken fire-tubes conveniently
