Brand Saw Mutil Angle Cutting Machine - China
price: 10000.00 Dollar US$

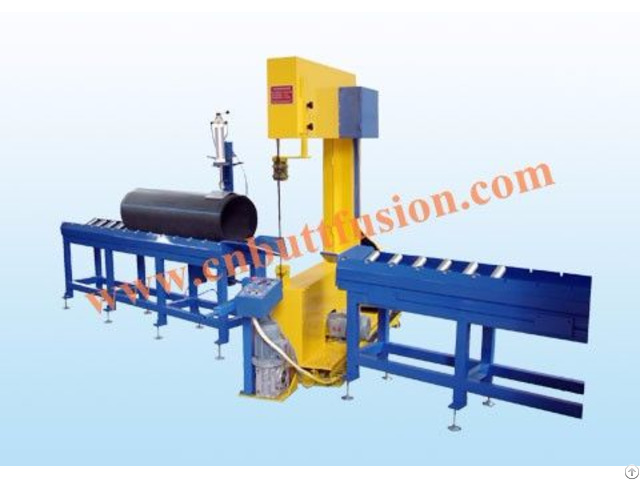

DQJ 630 Multi-angle Cutting Machine
Application: Suitable for cutting pipes according to specified angle and dimension while making an elbow, tee or cross, which lower the material waste and improve the welding efficiency.
Features:
1 - Cutting angle 0~67.5°, accurate angle location
2 - Applied to solid pipes or structured wall pipes made of thermoplastic such as PE, PP and PVDF, and other pipe and fittings made of non-metal materials
3 - A special designed integrality of body and swivel table makes them extremely stable
4 - Self inspection and stop of the machine in case of saw blade broken enables to guarantee operator's safety
5 - Strong construction, stable performance, lower noise and easy operation
6 - Infrared protection device (optional)
7 - Complies with 98/37 and 73/23 EEC standards
Technical parameter:
Maximum range: 630 mm Ranges of application: PE, PP and PVDF
Cutting angles: 0°～ 67.5°
Working voltage: ～380V ±10%, 50Hz
Total power: 2.25 kW, including: drive motor: 1.5kW, hydraulic unit motor: 0.75KW
Max.
line speed: 250m/min
Environment temperature: －10° ～ 45°
The whole machine consists of basic frame, support and press bar
Company Contact:
- Phone: 8618921353365
- Address: qianzhou town, wuxi , China
- Email:
- Website: https://www.cnbuttfusion.com
Published date: October 13, 2017
- Business Description: butt fusion welding machine and brand saw cutting machine used in pp pe pvdf hdpe pipe in contruction site or workshop
