Rack System

The Auxiliary System Supplier and Manufacturer in China adopts a single-layer new energy transport vehicle, an upper pallet unloading machine, and a hanger machine that interconnect and cooperate to form a closed-loop automatic production line.

After the product is demolded, the wet product is placed on the curing rack, which maximizes the protection of the surface of the colored pavement bricks and the structure of the hollow bricks, ensuring optimal curing.

The Batching Plant, Block Machine Supplier sends the green bricks, two pallets at a time, sequentially into each layer of the curing rack.

The layers of green bricks in the curing rack are spaced apart.

The new energy transport vehicle, in cooperation with a shuttle car, moves the filled curing racks into the curing room.

At the same time, the previously filled curing racks that have reached the required static curing time are transported out and sent to the unloading machine.

The bricks are then unloaded layer by layer into the stacking machine, and the empty racks are returned to the lifting machine via the return rack machine, forming a closed-loop production.

The separator machine in the stacking machine sends the unloaded brick pallets into the brick pallet separation mechanism.

The separated pallets are returned to the block machine by the palletizer for continuous cycling.

The separated bricks are reorganized and stacked into the corresponding brick specifications with reserved forklift holes or stacked on pallets.

The film covering machine, according to the settings of the stacking system, automatically draws out the protective film and applies it to the brick surface during the stacking process, effectively protecting the brick surface.

The wrapping machine wraps the stacked bricks with plastic film at the stacking machine’s output position, sealing the stack to ensure better curing of the bricks.

Finally, the strapping machine ties the stack of bricks with PET strapping in both horizontal and vertical directions, allowing for direct forklift loading and transportation without disassembling the stack.

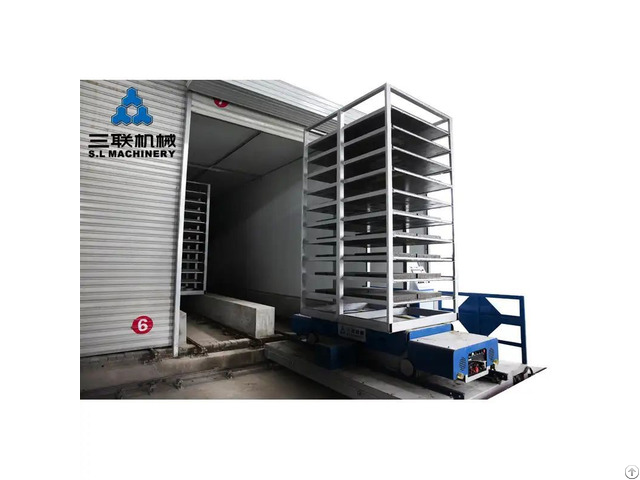

Single-layer Transport Vehicle:

*Battery: Lithium iron phosphate battery, with 3000 charge-discharge cycles

*Theoretical Lifespan: 5-7 years

*Lifting Stroke: 100mm

*Lifting Load: Rated at 10T

*Single Full Charge Usage Time: 12 hours

*Charging Time: 4 hours

*Shuttle Car Speed: 37 meters/min

*Transport Vehicle Speed: 37 meters/min

*Automatic Charging: One-button automatic charging after work

*Equipped with Lift Synchronization Device

*Hydraulic cylinder lifting Characteristics and Advantages of the Solution:

*Spaced Curing: The same Finger Cart production line mode has the same function (spaced curing).

*Indepent Shelves: Each shelf in the curing room is independent, requiring low foundation requirements.

*Energy Efficiency: No fuel consumption, energy saving and emission reduction.

*Centralized Curing for Quality: Centralized curing with vertical storage for better curing effect, enhancing product quality.

*Insulated and Energy-Saving Curing: Closed curing with vertical storage for insulation and energy saving, reducing emissions.

*Flexible Movement: Four-way movement, flexible adaptation to site conditions, improving land resource utilization.

*IoT Integration: Equipped with IoT (Internet of Things), allowing real-time monitoring of equipment status.
