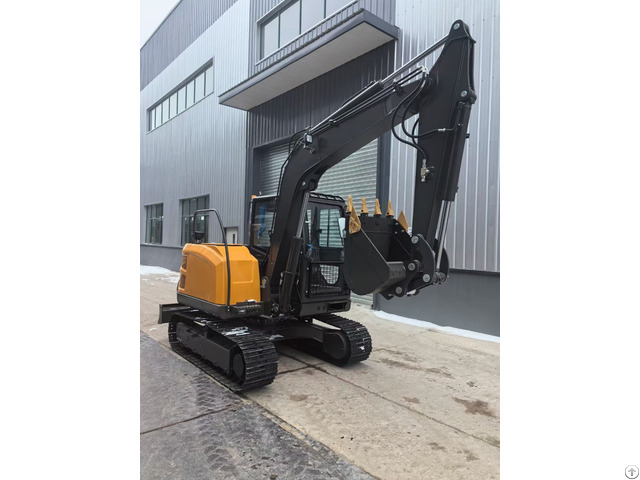

Medium Crawler Excavator 13 5ton Hydraulic System - China

Manufacturers supply medium crawler excavators: 13.5 ton hydraulic Excavator with powerful excavation capabilities and superior stability, suitable for various medium and large construction projects.

For example:

1 - Building construction: house foundation excavation, earthwork and underground garage construction.

2 - Municipal engineering: road construction, pipeline laying and infrastructure maintenance and repair.

3 - Mining work in medium-sized mines to improve work efficiency.

4 - Agriculture and forestry: tree transplantation, soil remediation, site preparation and environmental cleanup tasks.

Features

1 - Strong power

The 13.5 ton medium crawler excavator adopts a high-efficiency diesel engine, providing excellent power output and adapting to heavy-duty operations.

2 - Excellent stability

The medium crawler excavator adopts a widened chassis design to ensure excellent stability and safety on complex terrain.

The center of gravity design reduces the risk of overturning and improves work safety.

3 - Comfortable operating environment

The spacious cab, equipped with an open field of view and humanized controls, enhances operating comfort.

Noise reduction and shock absorption design reduce operator fatigue and make work more efficient.

4 - Efficient working capacity

The 13.5 ton medium crawler hydraulic excavator has a large digging depth and unloading height.

Quick-response hydraulic control improves work efficiency.

5 - Versatility

Wenpeng crawler excavators are compatible with various attachments (such as buckets, grabs, forks, breaker hammers, etc.

) to meet different types of construction needs.

Parameters

Model EX-135

Bucket Capacity 0.6m³

Swing Speed 0-12rmp

Gradeablity 30°

Max.

Bucket Digging Force 91KN

Max.

Arm Digging Force 55KN

Engine Model ISUZU 4JJ1

Power/Revolution Speed 73/2000(KW/rmp)

System Pressure 32Mpa

Dimension 7635*2500*2750mm

Cabin Height 2750mm

Axle Base 2950mm

Wheel(track)Distance 2000mm

Min Ground Clearance 400mm

Tail Swing Radius 2340mm

Max.

Digging Height 8540mm

Max.

Dumping Height 6125mm

Max.

Digging Depth 5095mm

Max.

Vertical Digging Depth 4650mm

Max.

Digging Radius 8000mm

Min.

Swing Radius 2445mm
