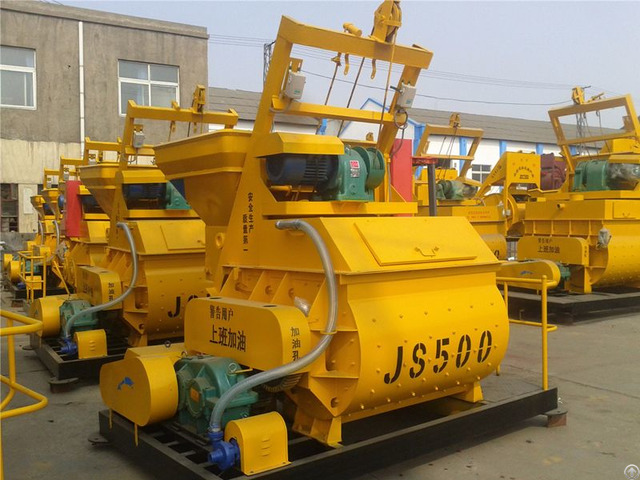

Minrui Js500 Twin Shaft Concrete Mixer - China

Description of JS500 Concrete Mixer:

JS 500 double shaft compulsory concrete mixer is widely used for mixing stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.

JS500 mixer can be used alone a separated concrete mixer or used as the mixing machine of HZS25 concrete batching plant.

Features of JS500 Concrete Mixer:

1 - Miniature horizontal twin shaft forced type concrete mixer;

2 - short mixing time, excellent homogeneity and reliable operation;

3 - Mix hard concrete, quaking concrete, fluidity concrete, light weight aggregate concrete;

4 - Shaft tip sealed by floating-ring is reliable and easy to maintain and replace;

5 - Thick plate and high abrasion proof mixing blade;

6 - Discharging height will be customized according to customer’s requirements.

Model

JS500

Discharging capacity

500L

Charging capacity

800L

Productivity

25M3

Max aggregate size

60/80mm

Working circle

60s

Discharge height

2.7m

Mixing blade

Speed

35r/min

Quantity

2*7

Mixing motor

Model

Y180M-4

Power

18.5KW

Lifting motor

Model

YEZ132S-4

Power

5.5KW

Pump motor

Model

50DWB20-8A

Power

0.75KW

Dimension(L*W*H)

3030*2300*2680mm
