Pe 150 250 Primary Stone Jaw Crusher - China

Model: PE-150*250

Feed opening(mm): -150*250

Max.

feeding size(mm): 125

Adjusting range of discharge opening(mm): 10-40

Processing capacity(t/h): 1-3 Rotation speed of eccentric shaft(r/min): 250

Motor power(kw): 5.5

Total weight(t): 0.8 Dimensions(L*W*H)(mm): 720 *660*850

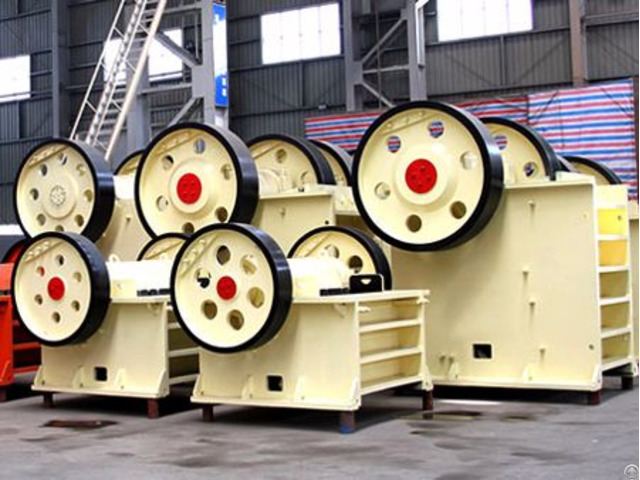

Jaw Crushers are mainly used in mining applications for grinding and crushing ores and rocks.

Using compression methods, jaw crushers can handle and reduce many large sized materials.

The jaw crusher uses a stationary jaw plate and a moving jaw plate to create a unique “V” shape.

As materials pass through the machine, the moving jaw compresses and pushes the material against the stationary plate.

This considerable amount of force then crushes the material down to a desired size before it can pass through the bottom of the Jaw Crusher.

Application of Aggregate Jaw Crusher

Stone crusher is suitable for crushing a variety of soft and hard ores and rocks, whose largest compression resistance is under 320MPa.

The maximum size of the feeding materials must be less than what is required according to the maximum specification of technical parameters, and the aggregate jaw crusher is mainly used for secondary and fine crushing mid hardness ores and rocks in metallurgical industry, mining, chemistry, cement making industry, construction, refractory, pottery and porcelain industry, etc Ling Heng Machinery brand is a trusted and reliable brand for its high quality and good manufacturing of China stone breaking machine.

It specializes in producing stone crusher which is widely used in mining, quarry, material handling.

Our company has been a manufacturer and exporter of rock crushers for decades such as PE series jaw crusher, stone toggle jaw crusher etc., and if you're interested in our jaw breakers and stone production lines, please contact us without any hesitance.
