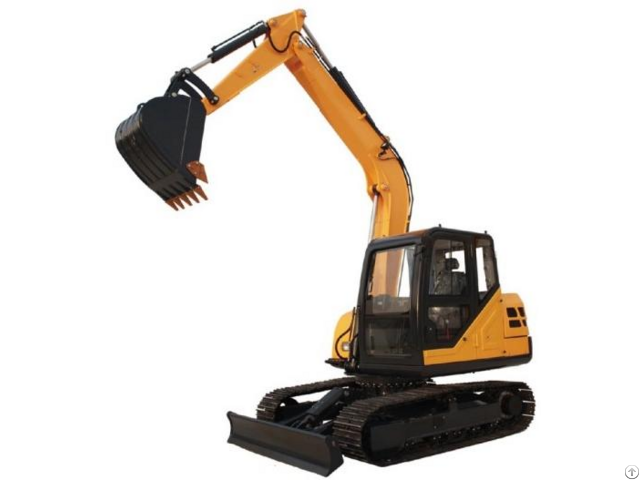

Small Crawler Excavator 3 5 Ton Kubota Engine For Farm - China

3.5 ton small crawler Excavator model EX-35, bucket capacity 0.12m³.

With its simple and smart design, strong and stable performance and excellent work efficiency, it is widely used in various small earthwork projects, such as: pipeline laying, small trench excavation and other municipal projects, landscaping maintenance, agricultural water channel excavation, land excavation, ditch cleaning, foundation excavation and foundation construction in real estate development, etc.

Features of 3.5 ton small crawler excavator

1 - Adopt Kubota engine, low emission, up to Euro 5 standard

2 - 360° rotating body, flexible operation, suitable for narrow area operation

3 - Crawler excavator accessories can be replaced to meet different operation needs, such as breaker, mower, fork, grab, auger, rake, etc.

4 - 3.5 ton small crawler excavator comes standard with a liftable Bulldozer

5 - 3.5 ton small excavator adopts crawler chassis system, stable walking

6 - Comfortable cab environment

7 - Personalized customization service, you can choose appearance, function, etc.

Wenpeng Machinery supplies a variety of excavators and excavator accessories, including mini excavator, small excavator, medium excavator, large excavator, wheeled excavators, etc.

If you need, you can contact us for quotation and details.

Parameter

Model：EX-35 Technical

Emission Standard：Euro 5, EPA4

Make /Model：KUBOTA/D1703

Power /Rotation speed：18.5kw(25HP)@2200 rpm

Number of cylinder：3

Type：In-line, water cooled, 4-stroke, mechanical pump, normally aspirated

Maximum Arm digging force： 18.2KN

Max.

torque：97.4Nm/15 00rpm

Displacement：1.647L

Maximum Travel speed(High/low) ：4.4/2.4km/h

Width of steel track shoe：300mm

Carrier roller(Each side)：1

Supporting roller(Each side)：4

Overal dimension(L*WH)： 4915mm*1720mm*2525mm
