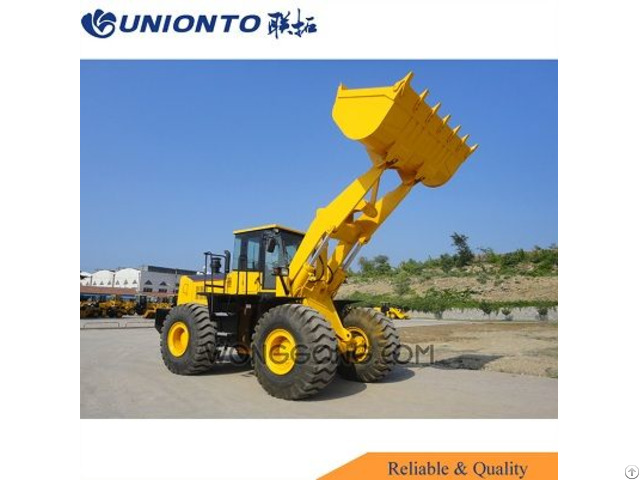

Unionto 866 Wheel Loader Cummins Engine - China

Performance feature

1) Full hydraulic pilot manipulation, portable and flexible, works excellently for micro motion.

2) Twin pumps confluence working system and coaxial flow amplifying system, improve the working efficiency.

3) Advanced bucket can keep flat automatically, more convenient to manipulate, and reduce the driver’s labor intensity.

4) High power Cummins turbo charged engine (or Cummins engine), matched with strengthen and stretched chassis and hydraulic system, reliable performance and high efficiency.

5) Single dump cylinders, "Z" type bucket mechanism, achieve huge digging force.

6) Drive axle is suitable for the heavy working condition, with big gear modulus, and is specially designed for great poor working conditions, strong durability.

7) Enhanced cab with large space and panoramic view, and spring damping high quality sofa seat of Germany's professional technology, make the operation comfortable and safety.

The Main Performance Parameter of Wheel Loader UNIONTO-866

Performance 1 Rated load 6000kg 2 Overall weight 18200kg 3 Rated bucket capacity 3.3m3 4 Maximum tractive force 158KN 5 Maximum breakout force 204KN 6 Maximum grade ability 30℃ 7 Maximum dump height 3448mm 8 Maximum dump reach 1249mm 9 Overall dimension (L×W×H) 7965×3050×3470mm 10 Minimum turning radius 70200mm

Engine 11 Model DF Cummins 6CTA8.3-C240 12 Type Inline water cooling dry cylinder injection 13 No.

of cylinder-bore/stroke 6－114×135mm 14 Rated power 178kw--2200r/min 15 Maximum torque 1028N.

m 16 Min fuel-consume ratio ≤220g/kw.

h

Transmission system 17 Torque converter YJ375 18 Gearbox type Countershaft, constant mesh spur gear type, power shift 19 Gear shift 4 forward, 4reverse 20 Maximum speed 38km/h

Drive axles 21 Main reduction type Spiral bevel gear single reduction 22 Hub reduction type Single-stage planetary reduction 23 Wheel base (mm) 3200mm 24 Wheel tread 2250mm 25 Minimum ground clearance 450mm

Hydraulic system 26 System working pressure 17MPa 27 Boom lifting time 6.05±0.25s 28 Total time 10.8±0.5s 29 Fuel tank capacity 300L 30 Function of leveling automatically Yes

Brake system 31 Service brake Air over oil caliper disc brake on 4 wheels 32 Parking brake Manual caliper disc brake

Tyre 33 Specification 26.5-25 34 Front tyre pressure 0.4Mpa 35 Rear tyre pressure 0.35Mpa
