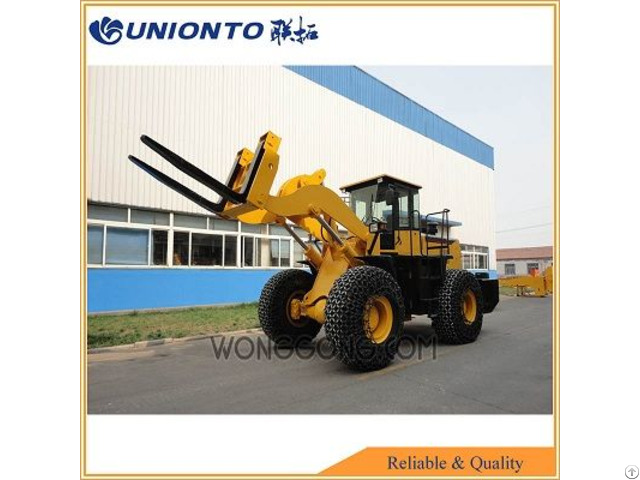

Unionto 888 16t Forklift Loader - China

Main Features

1) Fully hydraulic pilot control, light and flexible, micro-excellent results.

2) Double pump confluence of work systems, coaxial flow amplifying steering, significant energy saving effect.

3) Advanced automatic fork leveling function, manipulation more convenient, reducing the labor intensity of the driver.

4) High-power turbocharged Steyr engine and strengthening the lengthened chassis and hydraulic system perfectly fit, more reliable, more fuel-efficient.

5) Single tipping cylinder, "Z" type transfer bucket institutions, huge digging force to achieve.

6) Drive axle suitable for heavy duty jobs, gear modulus big, designed for the amount of bad condition work, durability.

7) Enhanced cab with large space and panoramic view, high-quality spring damping sofa seat manufactured by the German professional and technical, safe and comfortable operation.



Main performance parameters of UNIONTO-888-16T Forklift Loader

Performance 1 Rated load 16000kg 2 Total Weight 18600kg 3 Maximum traction 158KN 4 Maximum breakout force 204KN 5 Maximum grade ability 30° 6 Maximum dump height 2800mm 7 Minimum dump distance 1249mm 8 Overall dimensions (L × W × H) 7965×3050×3470mm 9 Minimum turning radius 7020mm

Engine 10 Model Steyr DHD10G0245 11 Type Inline / water / dry cylinder liner / DI 12 Number of cylinders - bore × stroke 6-126×130mm 13 Rated power 175kw-2200r/min 14 Maximum torque 950N.

m 15 Minimum fuel consumption rate ≤208g/kw.

h

Transmission 16 Torque converter YJ375 17 Gearbox type Countershaft, constant mesh spur gear, power shift 18 Gear shift 4 Forward, 4 reverse gear 19 Maximum speed 38Km/h

Drive axles 20 Main reduction type Spiral bevel gear single reduction 21 Hub reduction type Single-stage planetary reduction 22 Wheelbase 3200mm 23 Wheel Tread 2250mm 24 Minimum ground clearance 450mm

Hydraulic system 25 System working pressure 17Mpa 26 Boom lifting time 6.05±0.25s 27 Total time 10.8±0.5s 28 Fuel tank capacity 300L 29 Forklift automatic leveling function Yes

Braking System 30 Service brake Air over oil caliper disc brake on 4 wheels 31 Parking brake Manual ring hub brake

Tyre 32 Specification 26.5-25 33 Front and rear air pressure 0.40Mpa/0.35Mpa
