Introduction of ZWY-80/45L Underground Crawler Mucking Rock Loader

ZWY-80/45L crawler mucking rock loader, special sloping type ≤ 32 degrees, is a continuous production high-efficiency ore-out equipment, mainly used for excavation of mine rock roadway and semi-coal rock roadway, also It can be used for loading operations in diversion tunnels, railway tunnel construction, and national defense cavern construction.

It can be used in conjunction with hydraulic mine drilling trucks produced by our company to realize mechanization of mine excavation and greatly increase excavation speed.

It can be applied to small sections and slopes.

20°~-32° roadway.

The main features of ZWY-80/45L crawler mucking loader:

Retrieving power, strong loading capacity.

Sealed and lubricated crawler mucking loader it easy to adjust the tensioned crawler unit and has a long service life.

Good interchangeability;

The hydraulic breaker can be installed to crush, repair the large rock and coal blocks after the blasting.

Can use the work arm to achieve the risk of face-to-face, full-section rock loading, leaving no dead ends, no manual cleaning of the work surface.

Pingdong (for roadway) Crawler-type excavating loader [conveyor] Suitable section: Type 60 2.2*2.2 meters; Type 80 2.4*2.4 meters; Type 100 2.6*2.6 meters; Type 120 3.0*3.0 meters; Type 150 3.4*3.4 meters; Type 180 3.8*3.8 meters; Suitable section for large slope deviated well: 60 track type 2.2*2.2 meters section, maximum working slope of 28 degree slope; 80 track type 2.4*2.4 meters section, maximum Working slope 30 degree slope; 100 track type 2.6*2.6 meters section, maximum working slope 30 degrees; 120 track type 2.8*2.8 meters section, maximum working slope 30 degrees; 150 track type 3.0*3.0 meters section, maximum working slope 30 degrees ;180 crawler type 3.8*3.8 meters section, maximum working slope 32 degrees

Applicable to tunnel section, tunnel section, roadway section, laneway section, inclined well section, drift section, diversion tunnel section, diversion tunnel section, culvert section, mine tunnel section, underground construction section, geotechnical engineering section, mining project section, excavation section, large section, small section tunneling, traction, transportation equipment and accessories.

Parameter of ZWY-80/45L Underground Crawler Mucking Rock Loader

Project Unit Technical Parameter

Product Model Track Type ZWY-80/45L

Total weight KG 11860

Loading capacity m3/h 80

Excavation width mm 4800 3200

Excavation distance mm 1820 1530

Excavation height mm 2570 2300

Excavation depth mm 480 320

Unloading height mm 1470-1646 (variable)

Unloading distance mm 1600 (variable)

Walking speed m/s 0.54±5%

Scraper chain speed m/min 44

Applicable roadway slope (o) ≤32

Maximum working pressure mpa ≤32

Ground pressure mpa ≤ 0.1

Ground clearance mm ≤ 310

Total power KW 45

Track inner width mm 941 (can be widened)

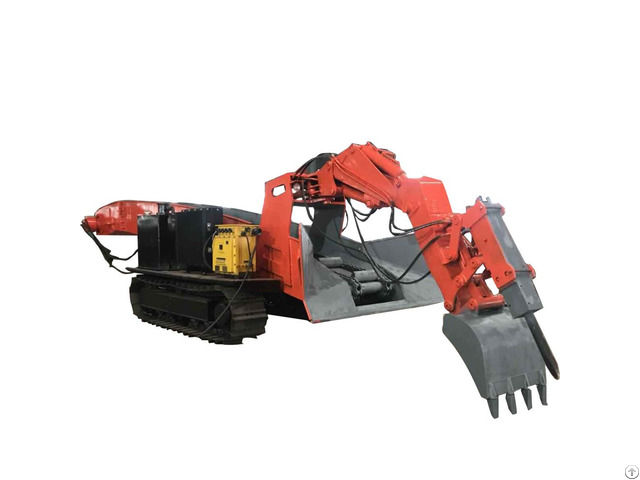

Photos of ZWY-80/45L Underground Crawler Mucking Rock Loader
