Hydraulic Track Lifting Machine For Railway Maintenance - China
price: 3900.00 Dollar US$

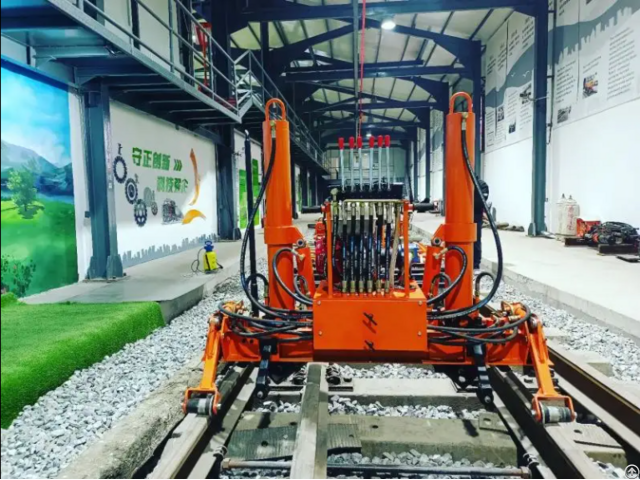

YQBJ-300*130 Railway Track Lifting Machine
This product has the fuction of lifting and lining.
Its structure is simple, light, flexible, safe and reliable.
This machine is
powered by Honda GX390 petrol engine, drives gear pump, and controls the work of each cylinder by multi-way reversing, valve, so as to realize the movement of machine in place, hook rail, tilt and lift.
Model
YQBJ-300*130
Type
Railway Track Lifting Machine
Material
Stainless Steel
Dimensions (L x W x H) (mm)
1760*900*1500 mm
Engine
Honda GX390, 6.6 kW
Max.
lifting force
150 kNx2
Max.
lining force
130 kN
Max.
lifting stroke
1020 mm
Max.
lining stroke
≥310mm/time
System pressure
20 MPa
Operation handle working force
≤200N
Weight
550 kg
