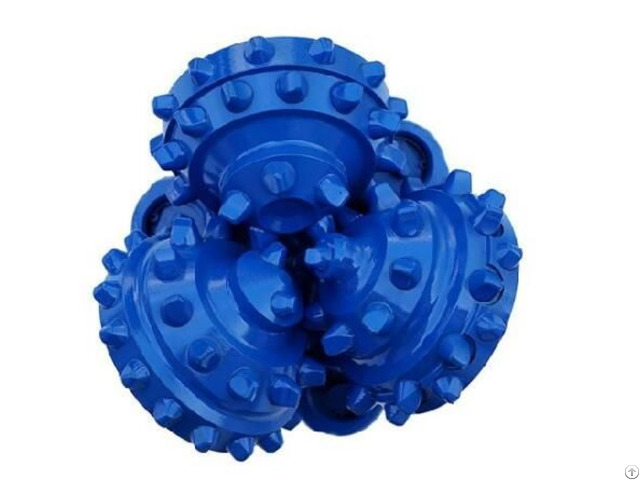

Tricone Bit Iadc437 - China

Tricone Bit IADC437 TCI tricone bits TCI Drill Bit Wholesale TCI Tricone Drill Bits Hardfacing

Tungsten carbide particle hardfacing is applied liberally along the shirttail and extended up the leading edge of the bit leg for additional protection in high-speed, directional or abrasive applications

Shirttail Compacts

Tungsten carbide compacts in the shirttail protect the leg and body in abrasive formations and deviated or horizontal wells.

Gauge Inserts

More tungsten carbide inserts are placed in the gauge to reduce the wear in the abrasive formation.

It can protect gauge and increases the stability and life of the bit.

Teeth

The teeth are composed of premium tungsten carbide and some other elements, our engineer fine-tuned the compacts to match specific formations and drilling applications.

Nozzle

Optimized flushing system including three combined nozzles, balances fluid flow, allows effectively cleaning bottom-hole zone and anti-balling.

GRANDDTS TCI Bit Technical Data

Bit Size IADC Code API Connection RECOMMENDED PARAMETERS

in mm Rotary Speed(rpm) Weight On Bit(KN)

8-1/2” 215.9 437 4-1/2"API REG 240〜70 0.35〜0.9

9-1/2” 241.3 437 6-5/8"API REG 240〜70 0.35-0.9

12-1/4” 311.1 437 6-5/8"API REG 240-70 0.35-0.9 If you have any question on PDC Bit, Oil Well Drill Bit, Tricone Bit.

We will give the professional answers to your questions.
