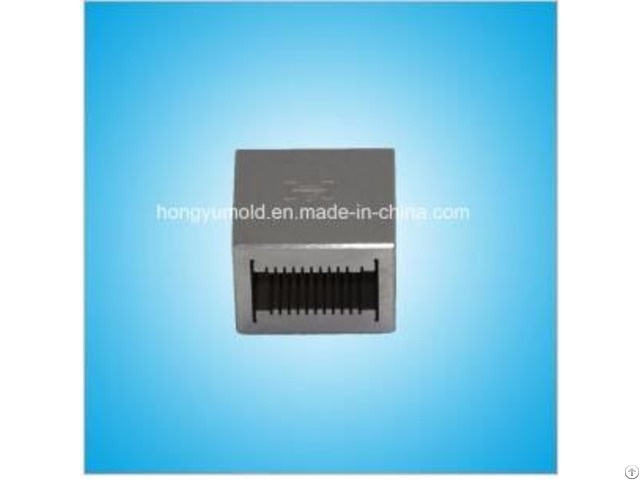

Tungsten Carbide Wire Cutting Parts For Selling - China

Application: Stamping Mould

Processing Method: Grind, Wire Cut

Process Combination: Single-Process Mould

Driving Motor Type: Permanent Magnet

Milling Speed: High Speed

Size: 12mm*20mm*15mm

Hole Tolerance: +/-0.003

Origin: China

Material: Hard Alloy and Steel Bonded Carbide

Technics: Cutting Die

Manufacturing Technology: Automation Technology

Mold Cavity Technology: The Traditional Forming Electrode Machining

Parts Detection Method: Geometric Detection

Life Time: 3 Years

Specification: Non-Standard, Standard, 12mm*20mm*15mm.

With Φ0.2 wire cutting, tolerance can be controlled in ±0.003mm.

Outside contour with ±0.002mm.

We have three kinds of wires, the diameters are Φ0.2, Φ0.15 and Φ0.1, the smallest radius we can do is R0.07.

1 Item description

2 Name wire cut Die

3 Process Machine Grinding machine, Sodick Wire cut machine

4 Measuring instruments Projector, Toolmaker Microscope

5 Contour tolerance ±0.001

6 Profile tolerance ±0.002

7 Hole tolerance ±0.003

9 First trial place order Track service, anything is wrong, we will take immediate measures

10 Quotation Once receive RFQ, we will reply you in 2 hours

11 Delivery time 10-20 days after confirm the order

12 Material CF-H40S, RD30, RD50, ASP23, AF1,, etc.

13 Design Non-standard(according to customers' request), Standard

14 Minimum order Products are non-standard parts, one piece is acceptable.

15 Packing Carton, attached Quality Control report .

Company Contact:

• Posted By: HONGYU MOLD

• Phone: +86-13412001563

• Address: No.,126 XINMA ROAD XINMALIAN VILLAGE, DONGGUAN , GUANGDONG , China

• Email:

• Website: http://www.dghongyumold.com

• Business Description: stamping die/punch/wire cutting products/stamping punch/spare parts/tungsten carbide punch.

  Scope of business: Stamping molding assembly, tungsten carbide tooling, CNC profile grinding, CNC wire cutting, ceramics molding components, carbide punches, pins & bushes, profile grinding of mirror surface.
