433mhz Uhf Outdoor Yagi Aluminum Antenna - China

price: 20.00 Dollar US$

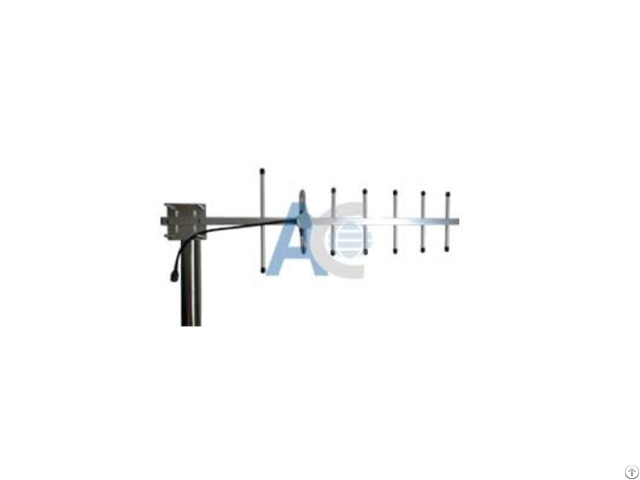

433mhz Uhf Outdoor Yagi Aluminum Antenna

Products Photos Catalog 433mhz Uhf Outdoor Photos Catalog

P/N: AC-D433Y09-07

Electrical Frequency Range 433MHz

Band width ±3MHz

Gain 9dBi

F/B Ratio ≥16 Horizontal Beam width 44°

Vertical Beam width 40°

V.S.W.

R ≤2.0

Radiation Direction

Polarization Vertical or Horizontal

Lightning Protection DC Grounded

Maximum Input Power 50W

Impedance 50Ώ

Connector N Female

Cable Length 30cm

Antenna Material Aluminum

Mount way Pole

Diameter of Installation Pole Φ30-50mm

Mechanical Antenna Dimension 990x358x75mm

Weight 1KG

Operating Temperature -40℃ to+80℃

Rated Wind Velocity 60M/S

RoHS Compliant YES


Company Contact:


  • Phone: +86-757-87668779

  • Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China

  • Email: Email


Published date: April 28, 2018 - Modified date: April 28, 2018

  • Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
