4g Lte New Design Screw Mounting Outdoor Antenna - China

price: 5.00 Dollar US$

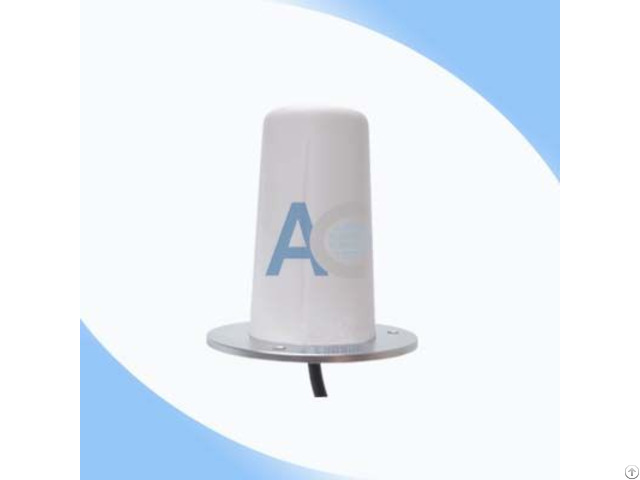

4g Lte New Design Screw Mounting Outdoor Antenna

Products Photos Catalog Lte Screw Mounting Photos Catalog

Electrical Frequency Range 698-960/1710-2700MHz

Band width 262/990MHz

Gain 1 4dBi / 698-960MHz

Gain 2 5.2dBi / 1710-2170MHz, Gain 3 4dBi / 2400-2700MHz

V.S.W.

R ≤2.0

Radiation Omni-Direction

Polarization Vertical

Lightning Protection DC-Grounded

Maximum Input Power 50W

Impedance 50Ώ

Connector SMA Male

Cable Type LMR195

Cable Length 2m

Antenna Radome Material ABS

Mount way Screw

Mechanical Dimensions Φ78×85mm

Weight 200g

Operating Temperature -40℃ to+70℃

RoHS Compliant YES


Company Contact:


  • Phone: +86-757-87668779

  • Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China

  • Email: Email


Published date: June 23, 2017

  • Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
