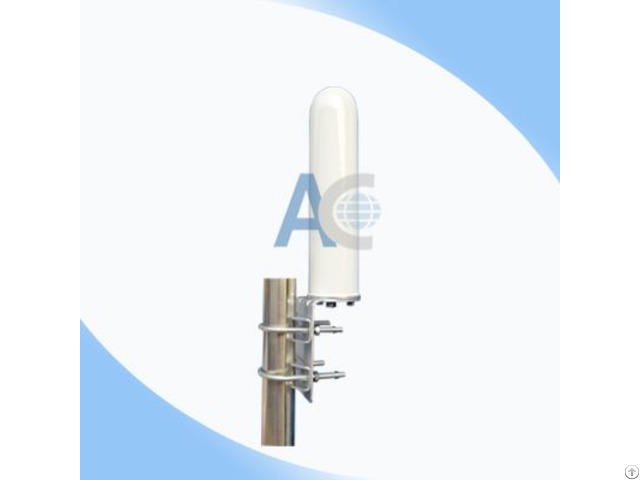

4g Lte Omni Outdoor Base Station Antenna - China
price: 25.00 Dollar US$
Electrical Frequency Range 698-960/1710-2700MHz
Band width 262/990MHz
Gain 4/6dBi
V.S.W.
R ≤2.5: 1
Radiation Omni-Direction
Horizontal Beam width 360°
Vertical Beam width 18°
Polarization Vertical
Lightning Protection DC-Grounded
Maximum Input Power 100W
Impedance 50Ώ
Connector N Female or customized
Antenna Radome Material Fiberglass
Mount way Pole
Diameter of Installation Pole Ø30~Ø50mm Mechanical Dimensions Φ63x220mm
Weight 1.2KG
Operating Temperature -40℃ to+70℃
Rated Wind Velocity 60m/s
RoHS Compliant YES
Company Contact:
- Posted By: Asian Creation Communication CO.,LTD
- Phone: +86-757-87668779
- Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China
- Email:
- Website: https://www.acantenna.com
Published date: July 1, 2017
- Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
