Gps Glonass Compass Antenna For Car - China

price: 3.00 Dollar US$

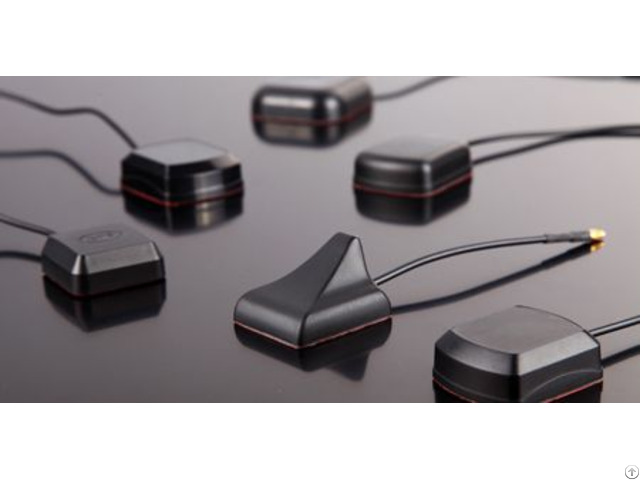

Gps Glonass Compass Antenna For Car

Products Photos Catalog Gps Glonass Compass Photos Catalog

1 - Can make the antenna with GPS/GLONASS/COMPASS frequency 2 - Can choose different cable length and connector

3 - Can custom the antenna 4 - Short lead time 10-20 days Item Specifications

Antenna Center Frequency 1575.42±1MHz Band Width CF±5MHz Polarization RHCP Gain 2dBic(Zenith) V.S.W.

R ＜1.5 Impendance 50Ω Axial Ratio 3dB(max) Dimension 25*25*4mm

LNA Typical Gain 28±2dB Noise Figure ＜1.5 Filter Insertion Loss ＜3dB Ex-band Attenuation 12dB@CF+50MHz/16dB@CF-50M Hz Supply Voltage 2.2~5V DC Current Consumption 5~15mA V.S.W.

R ＜2.0

Mechanical Cable RG174 Connector SMA/MCX/FAKRA or others Radome Material ABS Mounting Method Magnet/Adhesive

Environmental Operating Temperature -40℃~+85℃ Relative Humidity Up to 95% Ingress Protection IP65~IP67 Vibration 10 to 55Hz with 1.5mm amplitude 2hours Environmentally Friendly ROHS Compliant


Company Contact:


  • Phone: 008657383692157

  • Address: zhenye road 398#, south street, jiaxing,zhejiang,china, jiaxing , zhejiang , China

  • Email: Email


Published date: May 4, 2020 - Modified date: May 4, 2020

  • Business Description: 1 - Main products: GNSS antenna, GPS/GLONASS/COMPASS antenna,5G/4G/3G/2G/GPRS/ GSM antenna,WIFI antenna, Auto pre-market antenna as well as combination antennas.

    Various cable assemblies and connectors are also available.

    2 - Certificati on: CE,RoHs,FCC,Reach,IATF 16949,ISO9001: 2008,ISO140 01

    3 - Capacity: 30,000 units daily, 19000㎡factory area,over 450 workers.

    4 - QC: whole sets of Agilent test equipment to assure quality.
