High Gain 5 8ghz Fiberglass Antenna - China

price: 10.00 Dollar US$

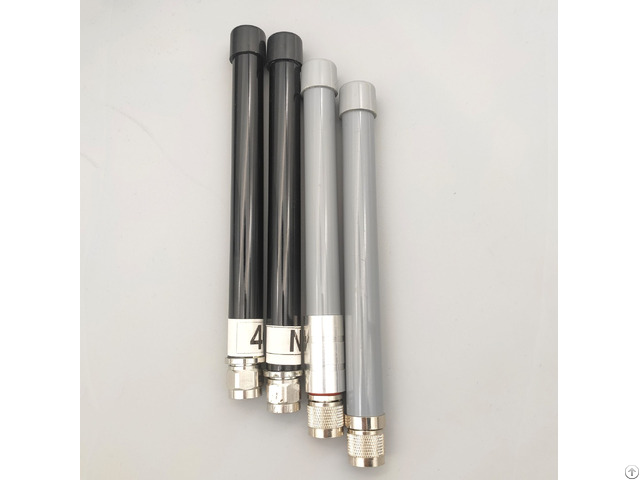

High Gain 5 8ghz Fiberglass Antenna

Products Photos Catalog Gain 8ghz Fiberglass Photos Catalog

Specifications ： Frequency range(MHz)：5150-5850.

Bandwidth(MHz)：700.

Gain(dBi)：12.

Half-power beam width(°)：H: 360 V: 6.

VSWR： ≤1.5.

Input Impedance(Ω)：50.

Polarization ：Vertical.

Maximum input power(W)：100.

Lightning protection ：DC Ground.

Input connector type ：N Female.

Dimensions (mm) ：Φ20*580.

Antenna weight(kg)：0.35.

Operating temperature(°c)：-40～ 60.

Rated Wind Velocity(m/s)： 60.

Radome color ：Gray.

Mounting way：Pole-holding.

Mounting hardware(mm)：￠35-￠5 0.


Company Contact:


  • Phone: +8617701635250

  • Address: Shanghai, China, Shanghai , Shanghai , China

  • Email: Email


Published date: December 18, 2020

  • Business Description: We are a professional manufacturer for antenna.

    We sell GNSS,GPS, 2G, 3G, GSM, 4G, LTE, 5G antenna all over the world.

    We support customized service and we have 5 engineer could help you with your project.
