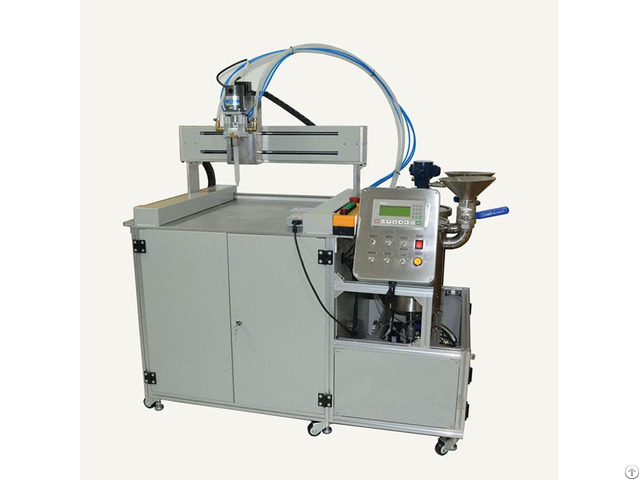

Bk460m Gear Pump Meter Mix System With Robot - China

1 - Gear Pump Meter-Mix System

1.1 Features

1 - Precision metering of the gear pump

2 - Digital entry of the speed of the step motor to adjust the ratio of two-part materials

3 - Adjustable mix ratio from 1: 1 to 10: 1

4 - Dynamic mix provide efficient processing of material with high mix ratios or vastly differing viscosities

5 - The advanced design of the piston valve provide positive cutoff.

6 - Low cost

1.2 Specification

Mix mode Dynamic mix

Metering pump Gear pump

Reservoir size 10L*10L

2 - Three-axis robot

2.1 Features

1 - Dispensing area of 460mm x 460mm

2 - Repeatability 0.05mm for accurate dispensing

3 - No computer skills required

4.100 programs, 4000 points per program

5 - Continuous path motion for precision XYZ dispensing

6 - Interpolates lines or arcs for three-dimensional dispensing

7 - Teach Pendant

2.2 Specification

XYZ Robot Working Area/ mm: 460 / 460 / 100

Load Worktable/Tool: 5kg

Speed PTP XY& Z (mm/sec): 100/100/100

Repeatability: +/- 0.02mm/ Axis Resolution: 0.01mm/Axis

Data Memory: 100 programs 4000 points/program

Display: Teach Pendant LCD

Drive System/Stepping Motor: Leadshine

Motion Control: PTP & CP

Interpolation Linear/Circular: 3 Axis

Teaching Method: Teach Pendant

I/O Signals: 8 Inputs / 8 Outputs External Interface: USB / RS232

Power Supply: 1000W/AC100～230V Working Temperature: 0 - 40°C

Relative Humidity (no condensation): 20 - 90%

Dimensions (WxDxH) mm: 850x1350x1320
