Dc48v Input Sixty Watt Radio Frequency Metal Laser Tube For 3d Dynamic Engraving - China

Model

RLT-60i

RLT-60h

RLT-60

RLT-60iL

RLT-60hL

RLT-60L

RLT-35m

Wavelength

9.3µm

10.2µm

10.6µm

Laser power

45W

55W

60W

45W

55W

60W

38W

Power stability

less than ±5% Beam quality M²

less than 1.2 Beam Diameter

2.0±0.2mm Beam divergence angle(full angle)

less than 8.0mrad Polarization

Horizontal linear polarization, more than 100: 1 Modulation frequency

0-25kHz Duty cycle range

0-100% Electrical input

DC48V/12A Cooling method

Air-cooling

Water-cooling Size

536mm×92.5mm×154mm

578mm×92.5mm×92mm Weight

10.0kg

8.8kg Working shell temperature

less than 60℃(140°F)

less than 50℃(122°F) Ambient Temperature

less than 15~40℃(59~104°F) Humidity

Non-condensing Ambient temperature

-10~60℃(14~140°F) 1) The laser power was measured at a laser temperature of 25 ℃, and for every 1 ℃ increase above 25 ℃, the output power decreased by about 1%; 2) Power stability calculation formula: Stability=± (Pmax Pmin)/(2 × Pmax) Stability testing conditions: Under normal operating conditions, preheat the machine for 10 minutes and maintain a constant control duty cycle.

Product Details

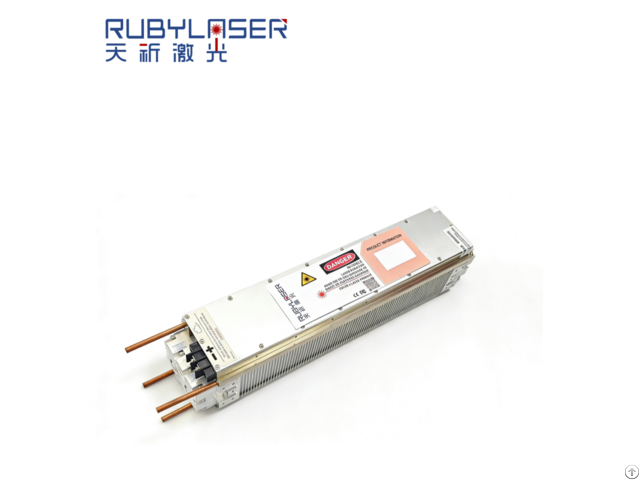

DC48V Input Sixty Watt Radio Frequency Metal Laser Tube for 3D Dynamic Engraving

RLT-60 Series CO2 RF laser tube 1 - Model: RLT-60 Air cooling, RLT-60 Water-cooling 2 - Produdct featrure: 1 - It adopts a waveguide structure design, which makes for excellent beam quality.

2 - It adopts a fully metal enclosed design and has maintenance free features.

3 - It adopts an integrated design and is easy to integrate into laser equipment.

3 - Application industry:

Remove glue; Carving of wooden products; Acrylic cutting and carving; Cowboy product carving.

The RLT-60 series CO2 RF laser tube has different wavelengths and diverse power characteristics, making it widely used in laser coding, beverage packaging marking, paper box packaging marking, button marking, wood carving, acrylic carving and cutting, non genuine leather carving and cutting.
