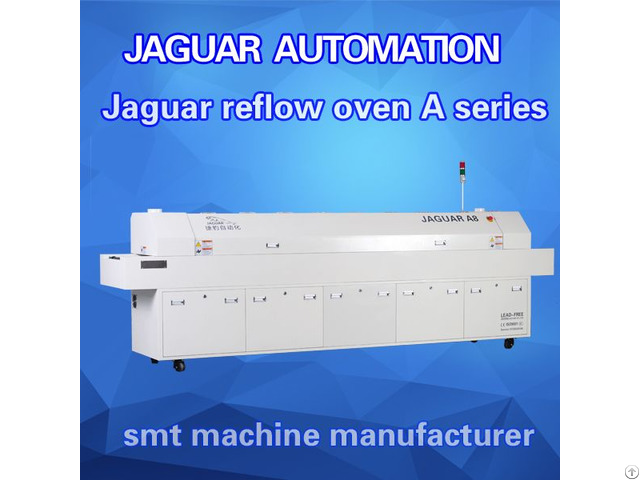

Economical Reflow Oven Smt Solder Machines Led Bulb Making Machine - China

price: 5000.00 Dollar US$

Economical Reflow Oven Smt Solder Machines Led Bulb Making Machine

Products Photos Catalog Economical Reflow Oven Photos Catalog

Specification: Model JAGUAR A8 Heating System Number of heating zones UP 8/BOTTOM 8 Length of heating zones 2800MM Heating mode Up: hot air; bottom: IR Cooling Mode Force air Conveyor System Max.

Width of PCB 350mm Mesh belt width 400mm Transmission Direction L→R(or R→L) Transmission Net Height 880±20mm Transmission type Mesh Conveyor speed 0-1000mm/min Fixed rail side Front rail fixed(option: rear rail fixed) Control system Power supply 5 line 3 phase 380V 50/60Hz Total power 26kw Starting power 22kw Normal power consumption 4KW Warming time About 20 mins Temp.

setting range Room temperature-300℃ Temp.

control method PID close loop control & SSR driving Temp.

control precision ±1℃ Temp.

deviation on PCB ±2℃ Data storage Process Data and status storage(80GB)(machine with PC) Nozzle plate Aluminum Alloy Plate Abnormal Alarm Abnormal temp.

(extra-high/extra-low temp.

) Board dropped alarm Tower light: Yellow-warming, Green-normal, Red-abnormal General Dimension(L*W*H) 4200×800×1320mm Weight 800KG Color Computer gray


Company Contact:


  • Phone: 13626197803

  • Address: Building B,Fuda Industrial Zone,National Highway 107,Shajing,Shenzhen,PRC, SHENZHEN , guangdong , China

  • Email: Email


Published date: December 22, 2017

  • Business Description: Were specialized in SMT field for over 10 years with the good quality and pretty competitive price, and our main products include:

    -Reflow oven

    -AOI, X-ray, SPI

    -Pick and place machine

    -Wave soldering machine

    -Loader and unloader, conveyor and etc.

Related listings



  • Economical Mini 6 Zones Hot Air Reflow Ovens Soldering Smt Machine
    Economical Mini 6 Zones Hot Air Reflow Ovens Soldering Smt Machine
    Equipment - Electrical - Assemblies - Shenzhen Jaguar Automation Equipment Co.,Ltd. - China - December 22, 2017 - 4000.00 Dollar US$

    Specification: Model JAGUAR M6 Heating System Number of heating zones UP 6/BOTTOM6 Length of heating zones 2500MM Heating mode hot air Cooling Mode Force air Cooling zones Up 1 bottom 1 Conveyor System Max. Width of PCB 350mm Mesh belt width 400mm Tr...

  • Mini Economic Reflow Ovens Smt Machine Factory Price
    Mini Economic Reflow Ovens Smt Machine Factory Price
    Equipment - Electrical - Assemblies - Shenzhen Jaguar Automation Equipment Co.,Ltd. - China - December 22, 2017 - 3000.00 Dollar US$

    Features: 1.The heating system is unique, advanced and long-life. 2.High efficiency and energy-save nickel cauterize heating pipe is used in heating system(replacement within one year), strong hot air cycle structure, making PCB and components heatin...

  • Mini Economic Reflow Ovens Smt Machine For Led Light Assembly
    Mini Economic Reflow Ovens Smt Machine For Led Light Assembly
    Equipment - Electrical - Assemblies - Shenzhen Jaguar Automation Equipment Co.,Ltd. - China - December 22, 2017 - 3500.00 Dollar US$

    Model JAGUAR A5 GENERAL Outside dimension 3100x720x1250mm Standard color Computer grey Weight 350kg Number of heating zones Up6/bottm6 Length of heating zones 2000mm Number of cooling zones 1 Standard feature of control system Warming time Approx.20m...
