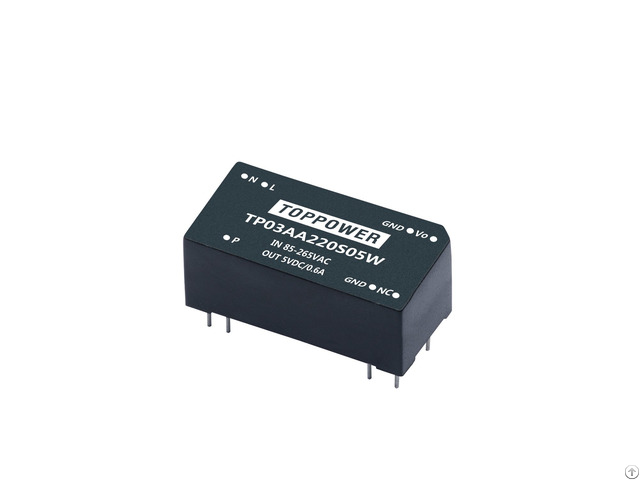

3w Isolation Wide Input Acdc Converters - China

The rated output power of TP03AA series is 3W with wide input voltage range, for both AC input and DC input application.

High reliability, precision, large power density, ultra-small size, no external heat sink required, stable output voltage and etc, with over current protection, EMI filter circuit, the rectifier filter circuit, 2500V isolation voltage, short circuit, overload, internal thermal protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control and other electronic systems.

Part Number Input Voltage Output

Rated Range values Voltage(VDC) Current

(A)

(VAC)

TP03AA220S05 220(2: 1) 165-265 5 0.5

TP03AA220S12 220(2: 1) 165-265 12 0.22

TP03AA220S15 220(2: 1) 165-265 15 0.17

TP03AA220S24 220(2: 1) 165-265 24 0.11

TP03AA220D05 220(2: 1) 165-265 ±5 ±0.25

TP03AA220D12 220(2: 1) 165-265 ±12 ±0.11

TP03AA220D15 220(2: 1) 165-265 ±15 ±0.09

TP03AA220S05W 220(4: 1) 85-265 5 0.5

TP03AA220S12W 220(4: 1) 85-265 12 0.22

TP03AA220S15W 220(4: 1) 85-265 15 0.17

TP03AA220S24W 220(4: 1) 85-265 24 0.11

TP03AA220D05W 220(4: 1) 85-265 ±5 ±0.25

TP03AA220D12W 220(4: 1) 85-265 ±12 ±0.11

TP03AA220D15W 220(4: 1) 85-265 ±15 ±0.09

TP03AA220D05P03W 220(4: 1) 85-265 +5/+3.3 0.4/0.1

TP03AA220D05P05W 220(4: 1) 85-265 +5/+5 0.4/0.1

TP03AA220D05P12W 220(4: 1) 85-265 +5/+12 0.3/0.1

TP03AA220D05P15W 220(4: 1) 85-265 +5/+15 0.3/0.08

TP03AA220D05P24W 220(4: 1) 85-265 +5/+24 0.25/0.06
