Laser Particle Sensor Pm2005 - China

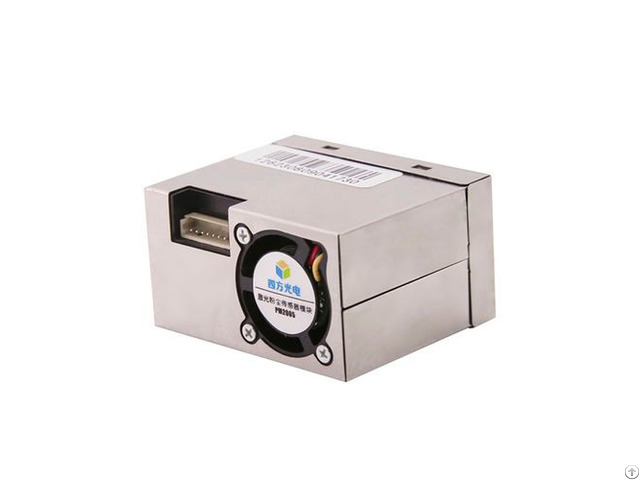

Introduction PM2005 is laser particle sensor module, which can measure indoor particle mass concentration PM2.5 exactly and output accurate particle concentration in μg/m³ directly via mathematical algorithm and scientific calibration.

Features

● High sensitive and quick response, output real-time particle mass concentration (μg/m³)

● High-accuracy and high-stability ● Signal output: UART-TTL, IIC, PWM

● Four types of measuring mode for option: single, continues, timing, dynamic

● Anti-ash-deposition structure design, no need of maintenance

● With voltage regulator design and anti-static ABS lead-free injection

● Compacted structure, light weight and easy for installation

● Customizable size and structure Applications

● Air purifier ● IAQ monitor

● Air conditioner with purifing function

● Ventilation system Specifications

1 - Measurement particle: 0.3~10μm

2 - Measurement range: 0-1000μg/m³ (extending to 2000μg/m³) 3 - Time to first reading: ≤8s

4 - Working temperature: -10 ~ 50°C

5 - Working humidity: 0 ~ 95% RH(non-condensing)

6 - Signal output: UART-TTL, IIC, PWM
