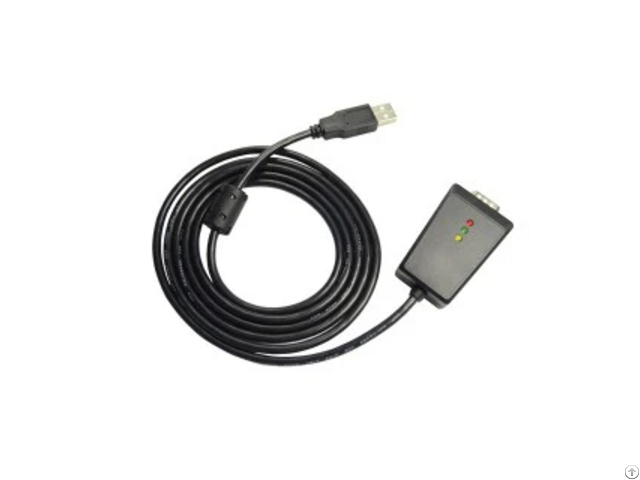

Usb To Rs485 422 Interface Converter - China
price: 7.70 Dollar US$
BD-USB-485/422 Usb to RS422 RS485 converter interface converter with magnetic FTDI chip 1.8M Performance Parameters Meet USB1.0, 1.1, 2.0 standards;
comply with EIA RS422, EIA RS485 standard 3 - USB signal: VCC, DATA-, DATA +, GND.
FG 4 - RS-422 signal: T / R +, T / R-, RXT +, RXD-, GND; RS-485 signal: T / R +, T / R-.
GND 5 - RS-422 Work: Full-duplex bi-directional point-to-many communication 6 - RS-485 Work: point half-duplex two-way communication for many Maximum transmission distance: USB port does not more than five meters, RS-422/485 terminal1200 m(9600bps time)
Transmission media: twisted pair or shielded cable
Load capacity: RS-422, up to 10, including the main equipment; RS-485, up to 32
Baud rate: 300 baud to 921600baud automatically detect the serial transfusion rate;
Flow control: none, hardware and xon / xoff
Interface protection: Surge protection, ± 15KV electrostatic protection
The signal indicator: Send (TXD), receive (RXD), power (POWER) 14 - USB cable with magnetic shielding, can be anti-interference Working environment: -40 to 85⁰C
Company Contact:
- Posted By: Baudcom
- Phone: 02137709251
- Address: 519A, Building A, Mackay Park, No. 389 Lianming Road, Minhang District, Shanghai, China., Minhang District, Shanghai , China
- Email:
- Website: https://www.baudcom.com.cn/
Published date: June 18, 2025 - Modified date: June 18, 2025
- Business Description: leading manufactures and exporters from Shanghai, China.
It is a high-tech company that specializes in researching, developing, manufacturing and marketing data communication products.
