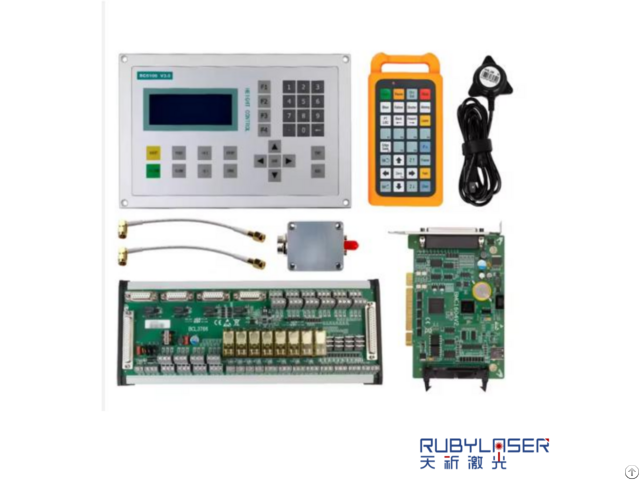

Cypcut Bcs100 Living Focus Control Board Fscut 2000c S Laser Metal Cutting Controller - China

The Baichu CypCut fiber laser cutting control software is widely used in low and medium power fiber laser cutting machine for various metal materials.

According to the latest publicly available information as of March 2026, its main advantages are as follows:

1 - Easy to operate and user-friendly interface: The software adopts a Ribbon style toolbar design The functional partition is clear, which allows beginners to quickly get started.

At the same time, it supports custom shortcut keys and operation processes, which can improve the efficiency of skilled users

2 - It supports multi format graphic import and automatic optimization

3 - It supports multiple mainstream graphic formats such as DXF, PLT, AI, Gerber, LXD, etc After import, it can automatically remove duplicate lines, merge connected lines, distinguish internal and external molds, sort processing order, etc., which reduces manual preprocessing time

4 - Intelligent path optimization and layout function: It has a built-in automatic layout algorithm, which supports functions such as common edge nesting, surplus material utilization, and part array filling.

It can significantly improve material utilization and reduce production costs

5 - Rich process parameter control: For different material thicknesses, it can customize laser power, cutting speed, frequency, perforation method (such as segmented perforation, progressive perforation, insensitive perforation, etc.

), and support saving material library.

which is easy to call repeatedly

6‌.

Improve the quality and efficiency of material processing

A: Non trace micro connection/seamless perforation: It reduces surface marks on the workpiece, which is suitable for parts with high appearance requirements

B: Disk centering: It can accurately locate the center position of circular boards

C: Breakpoint memory: It supports resuming processing from any position after interruption

D: Flight cutting mode: It is suitable for non precision parts and greatly improves cutting speed

7 - Real time monitoring and security protection: It provides real-time status display, alarm prompts, and processing progress tracking Combined with the Baichu BCS series capacitor heightness adjuster/follow-up living focus controller, it can achieve functions such as follow-up collision avoidance, frog jumping, and automatic edge finding It can ensure the safety of equipment

8 - Cross platform compatibility and scalability: It supports Win7 and above systems and is compatible with multiple motion control cards (such as BMC1204, BMC1605, etc.

) Some models of controllers do not require encryption dongles It supports PLC expansion, wireless handheld box, and Ethernet remote control

9 - Strong industry adaptability: For different application scenarios, it has multiple versions of fiber laser metal cutting control software to choose from:

A: CypCut: It is suitable for medium and low power general-purpose laser cutting machines

B: CypCutE: It is suitable for medium power bus laser cutting machines and integrates advanced functions such as "seamless micro connection" and "disc centering"

C: CypCutPro: It is specifically designed for medium to high power bus laser cutting machines and supports thick plate processing techniques such as "five level perforation" and "lightning perforation"

Note: CypCut forms a complete laser processing ecosystem with other products from Baichu, such as HypCut and CypTube.

It can seamlessly integrate and achieve efficient collaboration from design to production through CypNest nesting software

The above are the general features of the CYPCUT fiber laser metal cutting control system, which are for reference only.

Before placing an order, please contact with the salesperson to get functions and features of the exact model controller.

At the same time, our company can provide servo motors from Panasonic/Yaskawa brands in Japan, spped reducers from Mordor brand in France, Raytools brand laser cutting heads from Switzerland, CWFL series water cooling coolers from S&A brand in China, and other optical path accessories.

Basic Info.

Model NO.

FSCUT2000S Fiber laser cutting controller

Size

Middle

Customized

Non-Customized

Type

Controller

Material

Plastic

Certification

ISO 9001: 2008, ISO 9001: 2000, GS, CE

Signal

Continuous

Installed Machine

3015/1325fiber Laser Cutting Machine

Auto Find Edge

Yes

Applied Laser Power

1500/2000/3000W

Applied Material

All Kinds of Metal Materials

File Format

Dxf, Plt, Ai, Gerber, Lxd

Computer OS

Windows7 or Above

Other Accessory

Handle Box + Living Focus Contoller

Matched Fiber Laser Generator

Ipg Raycus Max Nlight

CE Certification

Yes

Z-Axis Automatic Collision Avoidance

Fscut2000s Has This Function.

Online Technical Support

Skilled Engineer Offer Tech Support

Transport Package

Carton Box and Foam

Specification

310*380

Trademark

Cypcut

Origin

China

HS Code

853710190

Production Capacity

2000sets/Set
