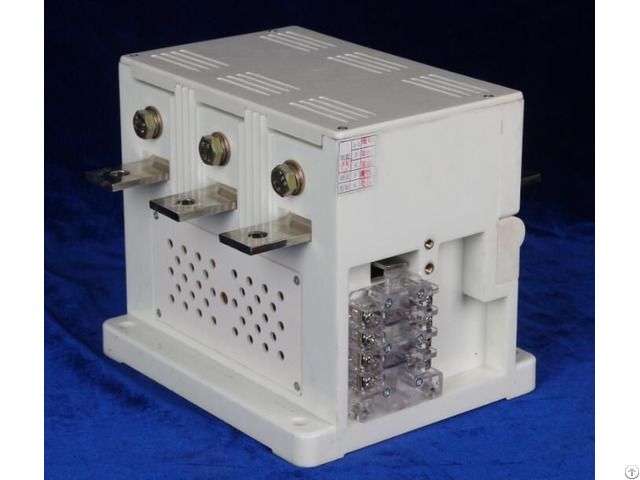

Hvj20 Series Vacuum Contactor - China
price: 350.00 Dollar US$
HVJ20 series vacuum contactor has higher rated current, smaller size and anti-dusty advantages.
It can be used in AC50 ~ 60Hz, 2KV power system, rated current to 800A, for long distance making-breaking and frequent starting and controlling of AC motor.
Rated voltage: 2 kv / 2 kv
Rated current: 630A / 800A
Main circuit making ability (A/100 times): 6300 / 6300
Main circuit break-make ability (A/10 times): 5000 / 6000
Maximum breaking ability (A/3 times): 6300 / 6300
Electrical life AC3(times): 600, 000 / 600, 000
Electrical life AC4(times): 100, 000 / 100, 000
Mechanical life(times): 1, 000, 000 / 1, 000, 000
Rated operating frequency AC3(times /h): 300 / 300
Rated operating frequency AC4(times /h): 120 / 120
Short-time operating frequency times /h(20S): 1200 / 1200
Clearance between open contacts(mm): 3±0.3 / 3±0.3
Over travel(mm): ≥1 / ≥1
Company Contact:
- Posted By: Hubei Jucro Electric CO., LTD.
- Phone: 18827250932
- Address: 4#Rd Xiannv,Zhijiang City,Yicahng City,, Hubei Province,China, Yichang City, Hubei , China
- Email:
- Website: https://www.jucro.com/
Published date: August 30, 2018
- Business Description: Hubei Jucro Electric CO., LTD. is a private enterprise that produces and exports high voltage electrical equipment.
The main products are: vacuum contactors, vacuum circuit breakers, vacuum interrupters and related accessories.
The product rated voltage range covers 660KV/1.14KV/3.6KV/7.2KV/ 24KV/40.5KV.
The rated current of the product ranges from 125A to 4000A.
