50mm Dia High Precision 0 1 Class 1000a Oscilloscope Current Clamp Probe - China

price: 150.00 Dollar US$

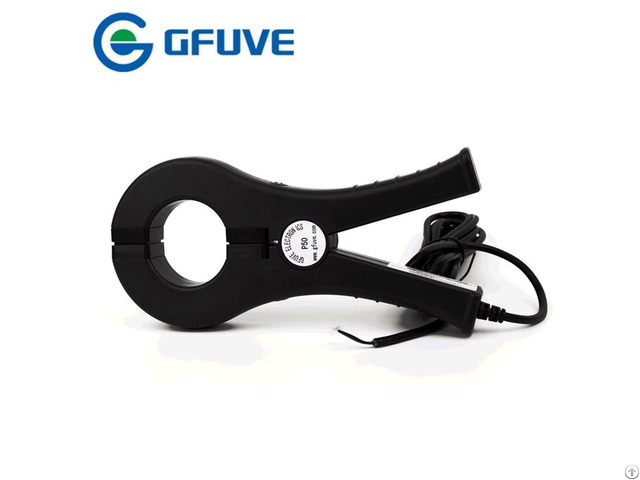

50mm Dia High Precision 0 1 Class 1000a Oscilloscope Current Clamp Probe

Products Photos Catalog 50mm Dia Precision Photos Catalog

Theory

In electrical and electronic engineering, a current clamp is an electrical device with jaws which open to allow clamping around an electrical conductor.

This allows measurement of the current in a conductor without the need to make physical contact with it, or to disconnect it for insertion through the probe.

Current clamps are typically used to read the magnitude of alternating current (AC) and, with additional instrumentation, the phase and waveform can also be measured.

Some clamps meters can measure currents of 1000 A and more.

Applications

The round jaw design on the P50 Series AC current clamp along with the high content nickel metal core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important.

Measurement range is 1mA to 1200A.

The P50 current clamp is a general purpose 1000A AC current clamp designed for use with DMMs, loggers and other instruments that have a current input.

It has a 1000: 1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw.

The P50 has an integral 2.5m lead terminated.

The rounded jaw design on this current clamp makes it well-suited for power applications where high accuracy 0.1% and low phase shift and wide frequency response are important.

Power quality measuring

Large industrial loads

Measuring around cable bundles

Power load monitoring

Waveform analysis

Energy meter calibrator

Power monitor

Phase Angle meter

Resistance tester Features

Measurement range of 1mA to 1200A AC

Large jaw opening accommodates conductors up to two 500kcmil

Improved ergonomic design and easy operation

High content nickel metal core

Conforms to EN 61010, 600V CAT III

Low phase shift for power measurement

Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters

UL, CE mark


Company Contact:


  • Phone: 86-10-85782698

  • Address: 01117-8 Fortune street NO.67 Chaoyang Road. Chaoyang District,Beijing, China, Beijing , China

  • Email: Email


Published date: February 7, 2018

  • Business Description: GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China.

    It is professional in energy meter test system, energy meter portable tester and related accessory.

    The product of high voltage ammeter recorder develops very quickly in the market.

    Our company has achieved certification to ISO9001 - The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
