Scbh15 Medium Voltage Dry Type Transformer - China

product description

Amorphous alloy is the use of an advanced ultra-quenching technology, iron, cobalt, boron, silicon and other liquid melt spray to a very high speed chassis and rapid cooling, the formation of 0.02mm-0.04mm thin strip.

It has excellent soft magnetic properties, corrosion resistance, wear resistance and high resistivity and so on.

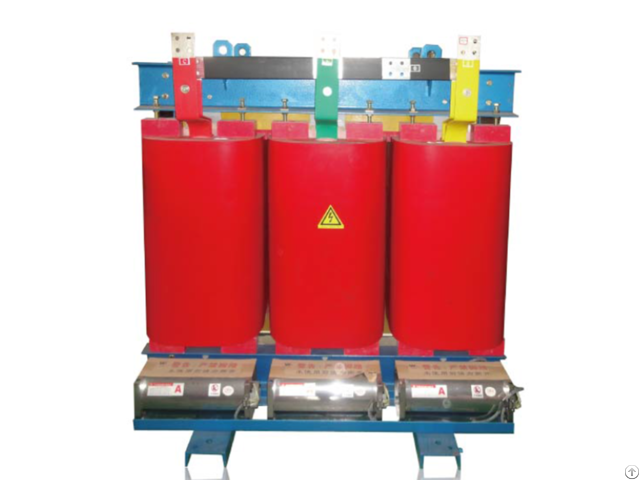

SCBH15 series of amorphous alloy dry-type transformers is the most advanced energy-saving dry-type transformers, no-load loss than GB / T10228 Table 4 reduced 75%, load loss than GB / T10228 Table 4 reduced by 15%; with maintenance-free, (Including airports, stations, urban subways, high-rise buildings and power plants, etc.

) can be replaced by amorphous alloy dry-type transformers, which can be replaced by amorphous alloy dry-type transformers., Can be placed in the load center, to adapt to high-density load of modern large city development needs.

High-voltage coil with H-class high-strength enameled wire wound, low pressure with copper foil around the vacuum pressure casting, iron core made of amorphous alloy strip rolled, rectangular section, four-frame five transformer models.

Model Description:

S C B H15- □ / □

│ │ │ │ │ | └──── High Voltage Coil Voltage Rating (KV)

│ │ │ │ │ └───── Rated capacity (KVA)

│ │ │ │ └ ─ ─ ─ ─ ─ ─ performance level code

│ │ │ └ ─ ─ ─ ─ ─ ─ ─ ─ non-gold alloy core

│ │ └ ─ ─ ─ ─ ─ ─ ─ ─ low-voltage foil-type coil

│ └─────── Resin pouring type

└ ─ ─ ─ ─ ─ ─ ─ ─ ─ three phase

SCBH15 series of amorphous alloy dry-type transformers use conditions:

1, altitude is not 1000m (when more than 1000m need special design).

2, the ambient temperature: the maximum temperature +40 ℃, the hottest month average temperature +30 ℃; minimum temperature -25 ℃, the hottest annual average temperature +20 ℃.

3, the power supply voltage waveform similar to the sine wave; three-phase power supply voltage is roughly symmetrical.

4, installed in the indoor, the use of the environment without obvious pollution.

SCBH15-500 / 10-0.4 Transformer technical parameters Technical parameters:



Features:

1, low energy consumption: the use of isotropic soft magnetic materials, magnetization power is small, high resistivity, low eddy current consumption.

With amorphous alloy made of iron core no-load loss and no-load current is very low, only silicon steel 1 / Transformer's no-load loss is reduced by 75% compared to GB / T10228 - Can greatly reduce the operating costs, energy-saving effect is remarkable.

2, corrosion resistance: amorphous alloy core through the resin and high temperature silica gel for the whole package, effectively prevent corrosion and amorphous alloy fragments fall off to effectively protect the core and coil.

3, low noise: In order to reduce the product running noise, in the product design to select a reasonable working magnetic density, in the product processing to improve the core and coil structure, the use of special noise reduction materials, product noise is much lower than the national standard GB / T10088 requirements The

4, anti-short circuit ability: the product uses three-phase five-column structure, the core around the framework of the use of structural protection, compact and reasonable.

Heng Anyuan electrical amorphous alloy dry-type transformers in the country took the lead through the burst short-circuit test.

5, low temperature rise, long life: low temperature products, heat capacity, air-cooled conditions can be 150% rated load operation.

Optional performance of the temperature control system for the safe operation of the transformer to provide reliable protection.
