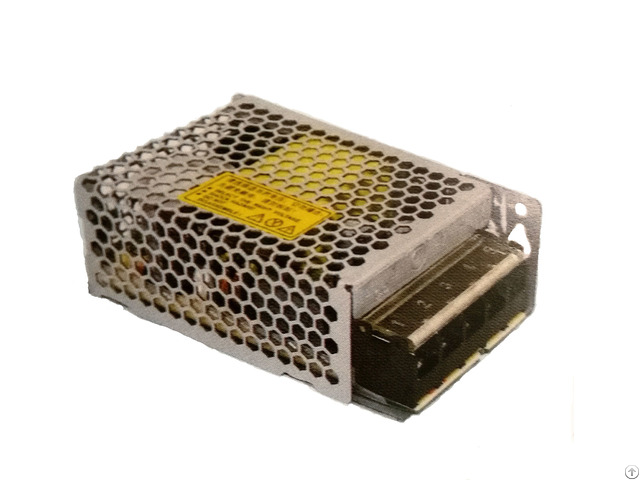

25w Wide Input Ac Dc Switching Power Supply - China

The rated output power of TPC/PD-25-XS series is 24-25.2W, input voltage range：88-264VAC, output voltage : 5V, 12V, 24V.

High reliability, precision, effificency, ultra-small size, with short circuit, overload, internal thermal protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control, New Energy, Security, and other electronic systems.

AC input ：88VAC-264VAC 100% full load burn-in test short circuit, overload, over-voltage protection Operating temperature：-20℃~70â„ ƒ RoHS complaint Low standby power consumption<1W All using 105℃ long-life electrolytic capacitors High reliability, effificency, long life-time Miniature size

SELECTION GUIDE

Part Number Input Output Efficiency

@25℃, (Typ)% Volatge(VAC) Voltage(VDC) Pre-set voltage

@25℃(V) Rated current(A) Current range(A) Rated power(W) Rated Range values TPC/PD-25-5S 220 88-264 5 5.00-5.05 5.0 0-5.0 25 ≥77

TPC/PD-25-12S 220 88-264 12 12.00-12.05 2.1 0-2.1 25.2 82

TPC/ PD-25-24S 220 88-264 24 24.00-24.05 1.0 0-1.0 24 82
