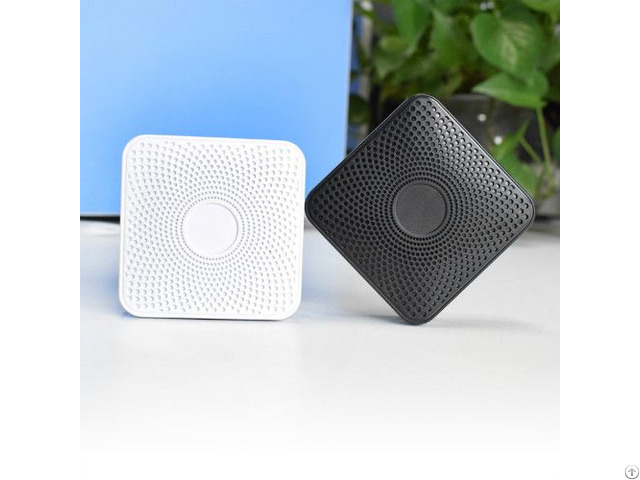

300m Transmission Range Ibeacon Marketing - China

Features

- Programmed MiniBeacon standard firmware

- 10 years battery life time with 4pcs Li- Fe S2 replaceable battery

- The max.

300 meters advertising distance

- Extreme operation temperature range: - 30 to 70 Celsius Degree

- IP67 waterproof can be used in outdoor application

- 8 characters password & AES HW encryption to ensure security

Certifications

- iBeacon MFi License (iBC- 14- 00582)

- FCC regulation (FCC Part 15.

)

- CE regulations (Included EN300328/301489/60950/624 79)

Specification

Compatibility

- Supported iOS 7.0+ and Android 4.3+ system;

- Compatible with Apple iBeaconTM standard;

- Compatible with all Bluetooth 4.0 (BLE) devices;

Configurable parameters

- UUID, major, minor, device name, password etc.

- Special Configuration APP;

Long battery lifetime and battery level

- 10 years @ default settings;

- Easy to get the real- time battery level notification;

Transmission power levels

- 8 adjustable levels, range from 0 to 7

- Transmission power range: - 30dBm to +4dBm

Soft- reboot

- Reboot the device via command without any tools;

Long range

- The max.

Range 300 meters in the open space;

- The range depends on the physical environment

OTA and J- link

- Supported upgrade via over- the- air;

- Reserved J- Link port on the board for programming

Security

- 8 characters password (lock/unlock parameters);

- Broadcast the encrypted data if needed;

- AES HW encryption

Connection mode

- Advertising mode, non- connectable;

- Configuration mode, connectable;

Mounting

- 3M branded adhesive for direct mounting to wall Product description

1 - Ultra- low power consumption chipset nRF52832 with ARM core

2 - Leverage 4PCS Li- S2 AA battery, the battery life time can reach 10 years

3 - The max.

300- 500 meters (984ft- 1640ft) advertising distance.

4 - IP67 waterproof can be used in outdoor application

5 - iBeacon & Eddystone compatible working at the same time

6 - UUID, major, minor, pairing password and other parameters can be changed by customer.

Turn on E2

1 - Press the button and keep holding 5 seconds, the Blue LED will Light on 5 seconds and then off.

It means that MaxBeacon wakes up and starts to broadcasting.

2 - Press the button and keep holding 5 seconds, the Blue LED will flash 5 times and then off.

It means that MaxBeacon is on the sleeping mode and stops broadcasting.

Customer Service

- Print your logo on the top of MiniBeacon;

- programmer your firmware into iBeacon Module;

- PCB can be customized.
